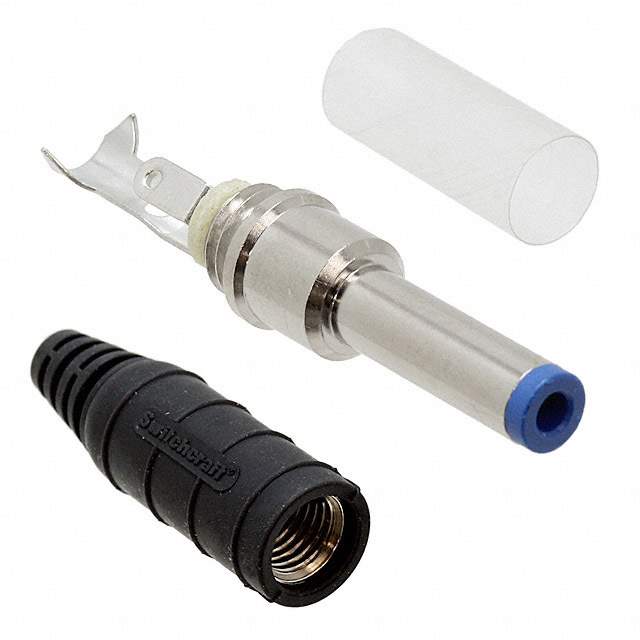

The S1017 from Switchcraft Inc. is a connector that falls under the category of Barrel - Power Connectors.

• Series: S10 series
• Feature: Strain relief
• Connector Type: Plug
• Termination: Solder
• Package: Bulk
• Contact Material: Copper Alloy
• Gender: Female
• Ingress Protection: No
• Shielding: No
• Housing Material: Elastomer
• Standard Package: 100
• Voltage - Rated: 24VDC
• Mounting Feature: No mounting feature
• Body Material: Copper Alloy
• Positions/Contacts: 2 Conductors, 3 Contacts
• Internal Switch(s): Does not contain switch
• Includes: 2 pcs - 1 Connector, 1 Handle
• Contact Material - Plating: Tin
• Industry Recognized Mating Diameter: 2.00mm ID (0.079"), 5.50mm OD (0.217")
• Insulation Color: Blue
• Mating Length/Depth: No
• Thread Size: No
• Mounting Type: Free hanging (in-line)
• Temperature Range - Operating: -40°C ~ 105°C
• Body Color: Silver, Black
• ECCN: EAR99
• MSL Level: 1 (Unlimited)
• HTSUS: 8536.69.8000
• Base Product Number: S10
