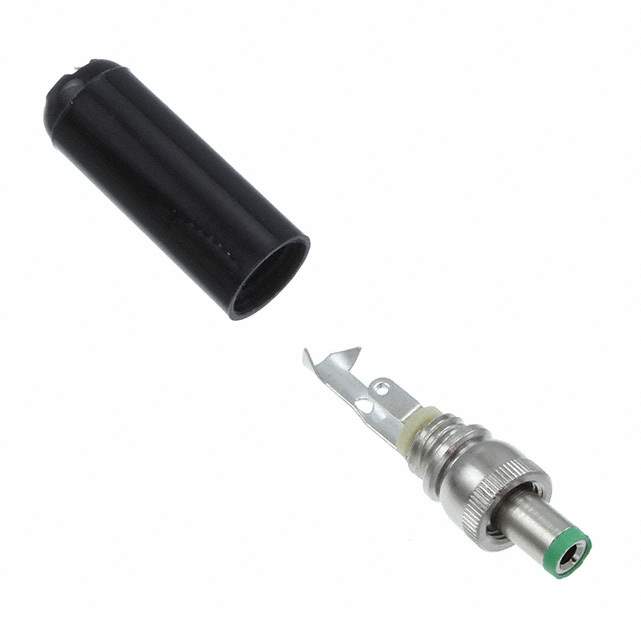

The 760KH is a DC power jack from Switchcraft Inc. It is designed for providing a secure and reliable power connection to electronic devices. These jacks are commonly used in a variety of applications where a stable power supply is essential.

Applications:

• Benchtop power supplies
• Audio equipment
• Portable electronic devices
• Testing and measurement equipment
• Industrial control systems

Features:

• Mounting Type: Panel mount
• Contact Material: Typically nickel-plated or gold-plated (refer to datasheet)
• Contact Termination: Solder lug
• Voltage Rating: Varies depending on the specific model (refer to datasheet)
• Current Rating: Varies depending on the specific model (refer to datasheet)
• Center Pin Diameter: 2.1mm (verify with the datasheet)

Benefits:

• Reliable Power Connection: Provides a secure and stable power connection, reducing the risk of power interruptions.
• Durable Construction: Designed to withstand repeated use and harsh environments.
• Easy to Install: Panel mount design simplifies installation.
• Versatile: Suitable for a wide range of applications.
• High Quality: Manufactured by Switchcraft, a trusted brand in connector technology.

Additional Details:

The Switchcraft 760KH series power jacks are known for their robustness and long service life. When selecting a power jack, it is crucial to consider the voltage and current requirements of the device being powered, as well as the mating plug dimensions. Always consult the Switchcraft datasheet for complete specifications and application notes.
