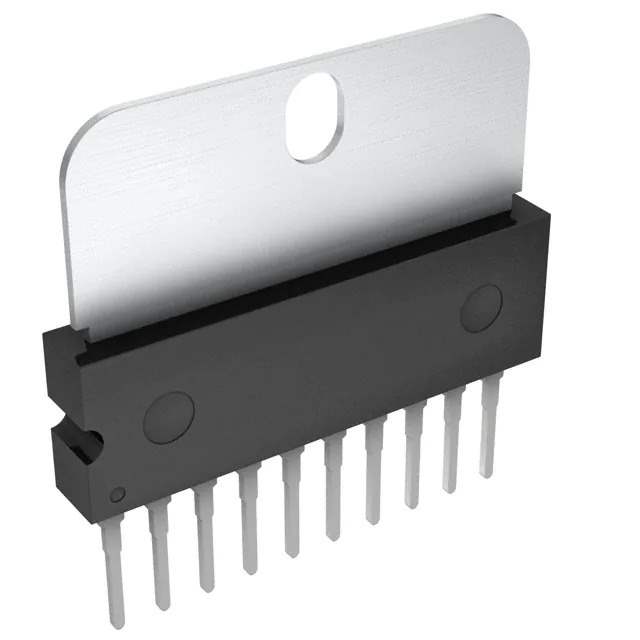

BA6238A Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Motor Drivers, Controllers
Mfr Rohm Semiconductor
Package Tube
Product Status Obsolete
Motor Type - AC, DC Brushed DC
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (3)
Interface Parallel
Technology Bipolar
Applications General Purpose
Current - Output 1.6A
Voltage - Supply 8V ~ 18V
Voltage - Load 8V ~ 18V
Temperature Range - Operating -25°C ~ 125°C (TJ)
Mounting Type Through Hole
Package / Case 10-SIP Exposed Tab
Supplier Device Package 10-HSIP
Base Product Number BA6238A
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 568445-BA6238A
Ultra Librarian 3D Model Ultra Librarian BA6238A CAD Model

Description

The BA6238A is a fully integrated motor driver designed for general-purpose applications.

  • Technology: Bipolar
  • Current Output: 1.6A
  • Integration: Fully integrated with control and power stages
  • Interface: Parallel
  • Output Configuration: Half bridge
  • Voltage Load Range: 8V to 18V
  • Suitable for: Driving brushed DC motors
  • Package: 10-SIP exposed tab
  • Mounting: Through-hole
  • Operating Temperature Range: -25°C to 125°C
  • REACH: Unaffected
  • ECCN: EAR99
