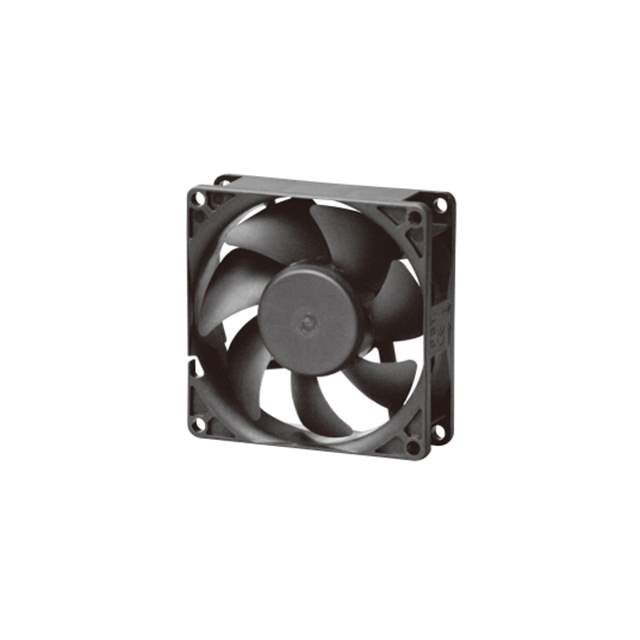

MF80252V3-1000U-A99 Real Image
Same model may have multiple batches, images only for reference.

MF80252V3-1000U-A99

Part No MF80252V3-1000U-A99
Manufacturer Sunon Fans
Catalog Fans, Thermal Management
Description FAN AXIAL 80X25MM 24VDC WIRE / Fan Tubeaxial 24VDC Square - 80mm L x 80mm H Vapo-Bearing™ 33.0 CFM (0.924m³/min) 2 Wire Leads
Datasheet
MF80252V3-1000U-A99 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Sunon Fans
Series MagLev® MF
Package Bulk
Voltage - Rated 24VDC
Size / Dimension Square - 80mm L x 80mm H
Width 25.00mm
Air Flow 33.0 CFM (0.924m³/min)
Static Pressure 0.110 in H2O (27.4 Pa)
Bearing Type Vapo-Bearing™
Fan Type Tubeaxial
Features Auto Restart
Noise 28.0dB(A)
Power (Watts) 960 mW
RPM 2600 RPM
Termination 2 Wire Leads
Temperature Range - Operating 14 ~ 158°F (-10 ~ 70°C)
Approval Agency cURus, TUV
Weight 0.167 lb (75.75 g)
Current Rating (Amps) 0.040A
Voltage Range 8 ~ 27.6VDC
Material - Frame Polybutylene Terephthalate (PBT)
Material - Blade Polybutylene Terephthalate (PBT)
Lifetime @ Temp. 70000 Hrs @ 40°C
Base Product Number MF80252V3
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1349689-MF80252V3-1000U-A99
Ultra Librarian 3D Model Ultra Librarian MF80252V3-1000U-A99 CAD Model

Description

The MF80252V3-1000U-A99 is a DC brushless fan that is part of the MagLev® MF series.

  • Shape: Square
  • Dimensions: 80mm L x 80mm H
  • Width: 25.00mm
  • Voltage Range: 8 ~ 27.6VDC
  • Rated Voltage: 24VDC
  • Power Consumption: 960mW
  • Noise Level: 28.0dB(A)
  • Bearing Type: Vapo-Bearing™
  • Fan Type: Tubeaxial
  • Package: Bulk
  • Standard Package: 1
  • Application: Commonly used in electronic devices that require cooling, such as computers, televisions, and audio equipment.
