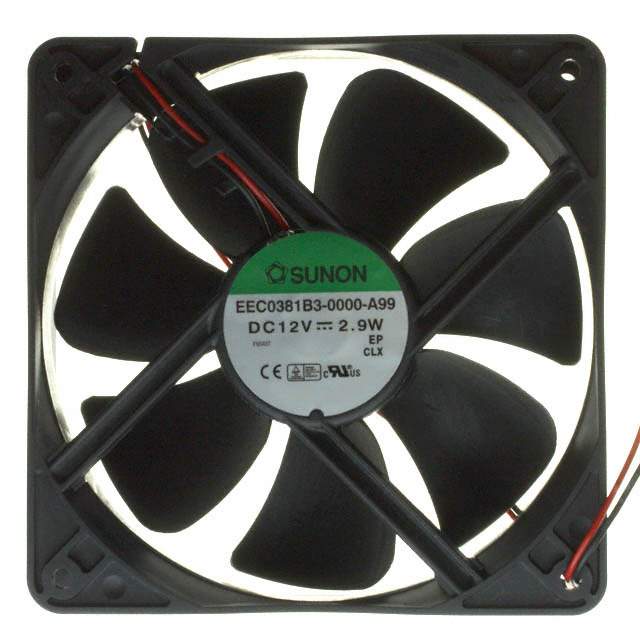

EEC0381B3-000U-A99 Real Image
Same model may have multiple batches, images only for reference.

EEC0381B3-000U-A99

Part No EEC0381B3-000U-A99
Manufacturer Sunon Fans
Catalog DC Fans
Description FAN AXIAL 120X38MM 12VDC WIRE / Fan Tubeaxial 12VDC Square - 120mm L x 120mm H Ball 93.0 CFM (2.60m³/min) 2 Wire Leads
Datasheet
EEC0381B3-000U-A99 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>DC Brushless Fans (BLDC)
Mfr Sunon Fans
Series EEC
Package Bulk
Voltage - Rated 12VDC
Dimension Square - 120mm L x 120mm H
Width 38.00mm
Air Flow 93.0 CFM (2.60m³/min)
Static Pressure 0.180 in H2O (44.8 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Auto Restart
Noise 37.0dB(A)
Power (Watts) 2.9 W
RPM 2100 RPM
Termination 2 Wire Leads
Temperature Range - Operating 14 ~ 158°F (-10 ~ 70°C)
Approval Agency CE, CUR, TUV, UL
Weight 0.472 lb (214.1 g)
Current Rating (Amps) 0.241A
Voltage Range 6 ~ 13.8VDC
Material - Frame Polybutylene Terephthalate (PBT)
Material - Blade Polybutylene Terephthalate (PBT)
Lifetime @ Temp. 70000 Hrs @ 40°C
Base Product Number EEC0381B3
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Other Names 259-1499,EEC0381B3000UA99,EEC0381B3-0000-A99
Standard Package 1
Win Source Part Number 1109451-EEC0381B3-000U-A99
Ultra Librarian 3D Model Ultra Librarian EEC0381B3-000U-A99 CAD Model

Description

The Sunon Fans EEC0381B3-000U-A99 is a DC brushless fan that is part of the EEC series.

  • Series: EEC
  • Voltage Rating: 12VDC
  • Power Rating: 2.9W
  • Lifetime: 70000 hours @ 40 degrees Celsius
  • Weight: 0.472 lbs
  • Width: 38.00mm
  • Square Dimension: 120mm L x 120mm H
  • Bearing Type: Ball
  • Fan Type: Tubeaxial
  • Noise Level: 37.0dB(A)
  • Air Flow: 93.0 CFM (2.60m³/min)
  • Static Pressure: 0.180 in H2O (44.8 Pa)
  • Maximum Current: 0.241A
  • REACH: Unaffected
  • Approvals: CE, CUR, TUV, and UL

The Sunon Fans EEC0381B3-000U-A99 is a high-quality DC brushless fan that is ideal for use in a variety of electronic devices.
