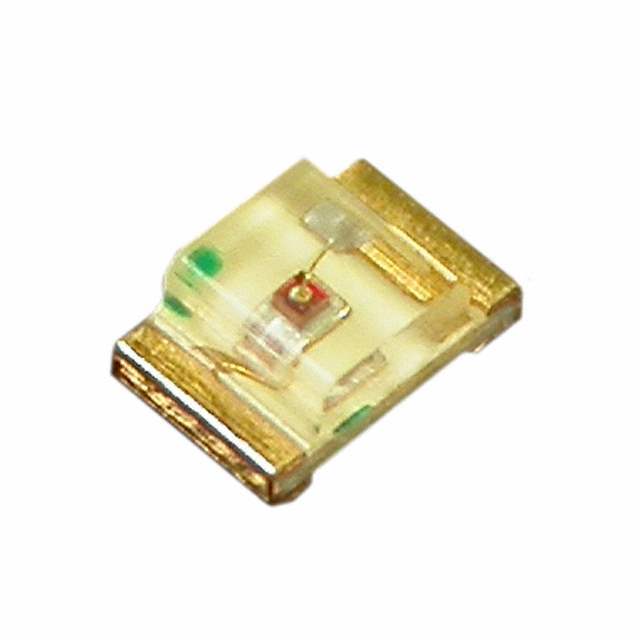

The XZMG54W-1 is a green 568nm LED indication from SunLED. It is a discrete 2.2V 0805 (2012 metric) surface mount device (SMD) LED. This LED has a typical luminous intensity of 11mcd and a viewing angle of 120°. The XZMG54W-1 is suitable for a wide range of applications, including indicator lights, status lights, and backlight illumination.

Features:

• Green 568nm wavelength
• Discrete 2.2V 0805 (2012 metric) surface mount device (SMD)
• Typical luminous intensity of 11mcd
• Viewing angle of 120°
• Long lifespan
• RoHS compliant

Applications:

• Indicator lights
• Status lights
• Backlight illumination
• Control panels
• Industrial automation
• Medical devices
• Consumer electronics
• Automotive

Benefits:

• The XZMG54W-1 is a high-quality LED with a long lifespan, making it ideal for a wide range of applications.
• The SMD package is easy to mount and solder, making it ideal for automated manufacturing processes.
• The low voltage requirement makes it suitable for battery-powered applications.
• The green wavelength is easy to see in a variety of lighting conditions.

How to use the XZMG54W-1:

To use the XZMG54W-1, simply connect it to a power supply with a voltage of 2.2V or less. The LED will emit a green light when it is turned on. The LED can be mounted on a PCB using surface mount technology (SMT).

Here are some additional details about the XZMG54W-1:

• The LED has a typical forward voltage (Vf) of 2.2V and a forward current (If) of 20mA.
• The LED has a reverse voltage (Vr) of 5V.
• The LED has an operating temperature range of -40°C to +85°C.
• The LED has a storage temperature range of -40°C to +100°C.

Conclusion:

The XZMG54W-1 is a high-quality, versatile LED that is suitable for a wide range of applications. It is easy to use and has a long lifespan.
