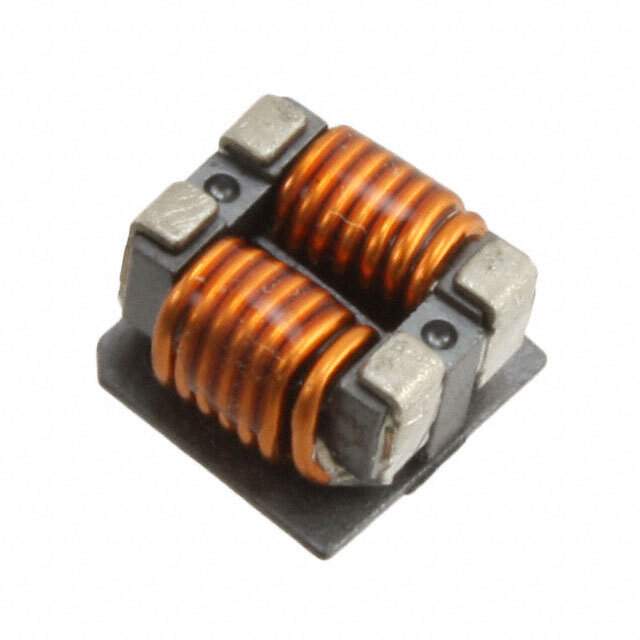

CPFC805NP-100M05 Real Image
Same model may have multiple batches, images only for reference.

CPFC805NP-100M05

Part No CPFC805NP-100M05
Manufacturer Sumida America Components Inc.
Catalog Common Mode Chokes
Description CMC 4.5A 2LN 500 OHM SMD
Datasheet
CPFC805NP-100M05 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Sumida America Components Inc.
Packaging Reel - TR
Status Active
Filter Type Power Line
Number of Lines 2
Impedance @ Frequency 500 Ohm @ 100MHz
Current Rating (Max) 4.5A
DC Resistance (DCR) (Max) 15 mOhm
Mounting SMD (SMT)
Height (Max) 0.189" (4.80mm)
Win Source Part Number 1037855-CPFC805NP-100M05
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CPFC805NP-100M05 CAD Model

Description

The Sumida America Components Inc. CPFC805NP-100M05 is a power line filter with a maximum current rating of 4.5A. Sumida America Components Inc. CPFC805NP-100M05 is a product by Sumida America Components Inc..

  • Type: power line filter
  • Maximum Current Rating: 4.5A
  • DC Resistance: 15 mOhm
  • Impedance: 500 Ohm @ 100MHz
  • Mounting: SMD
  • Packaging: reel
  • Height: 0.189" (4.80mm)
  • Lines: 2
  • Status: active
  • Supply and Demand Status: balanced
