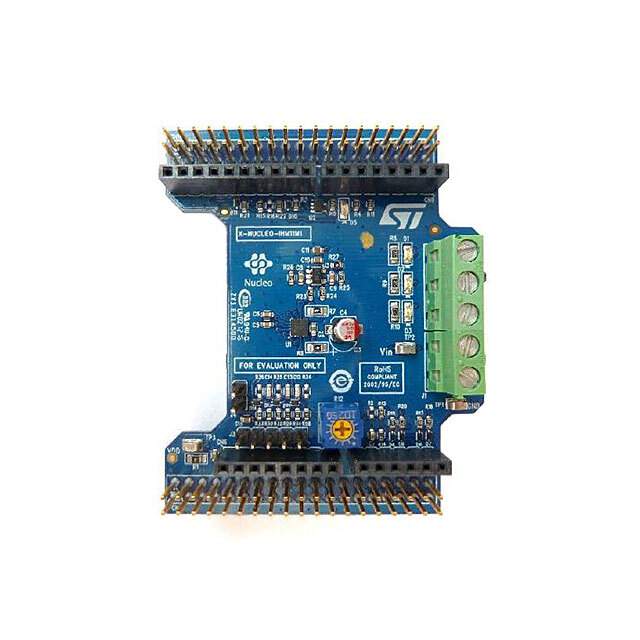

The X-NUCLEO-IHM11M1 is a high-performance stepper motor driver expansion board designed by STMicroelectronics, tailored for rapid prototyping and development of applications requiring precise stepper motor control. This board is part of the extensive STM32 Nucleo ecosystem, allowing for seamless integration with STM32 Nucleo microcontroller boards and a wide range of other expansion boards, making it a versatile choice for developers and engineers.

Key Features

• Compatible with bipolar stepper motors
• Based on the advanced powerSTEP01 driver for microstepping
• Supports a wide range of motor supply voltages (from 10.5 V to 85 V)
• Maximum output current up to 10 A (with heat sinking)
• Integrated microstepping controller with motion engine and SPI interface
• Overcurrent, overtemperature, and short-circuit protection
• Programmable speed profile and acceleration/deceleration ramps
• Low RDS(on) power MOSFETs and non-dissipative current sensing

Applications

The X-NUCLEO-IHM11M1 is suitable for a broad range of applications requiring precise motor control and robust performance, such as:

• 3D printers and CNC machines
• Robotics and automation systems
• Medical equipment
• Surveillance and security cameras

Development Support

STMicroelectronics provides comprehensive support for the X-NUCLEO-IHM11M1 through software libraries and examples available in the STM32Cube software suite. This allows developers to quickly start their projects and focus on application development rather than low-level driver implementation. The board is also supported by a wide range of development tools, including the STM32CubeMonitor for motor parameter tuning and real-time monitoring.

For those looking to harness the power of the X-NUCLEO-IHM11M1, STMicroelectronics has ensured that this expansion board not only offers high performance but also the ease of use and flexibility required to accelerate the development process and reduce time to market for stepper motor-driven applications.
