The VND7012AYTR-E is a state-of-the-art double channel high-side driver manufactured by STMicroelectronics, designed to deliver robust performance for automotive and industrial applications. This advanced product is part of the VIPower M0-7 series, which is known for its efficiency and reliability in handling power loads with high precision.

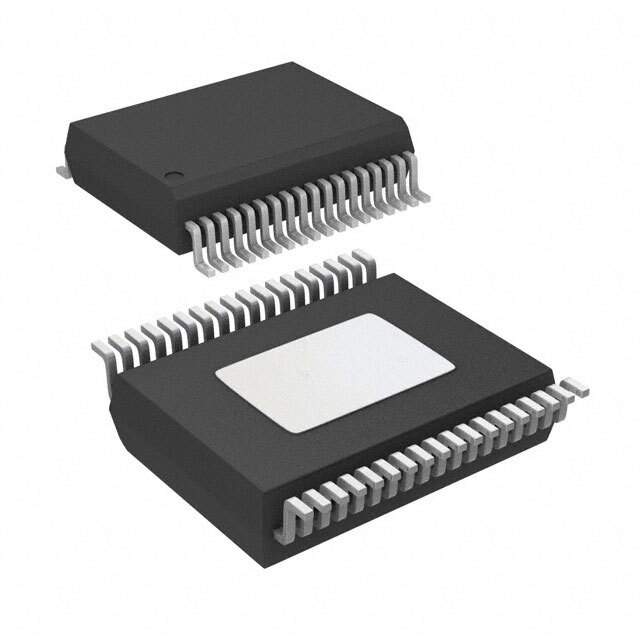

Enclosed in a compact PowerSSO-24 package, the VND7012AYTR-E integrates two independent channels that can control resistive, inductive, and capacitive loads. With an operating voltage range of 5.5 V to 36 V, it offers great flexibility and is suitable for 12V, 24V systems, and even 42V electrical environments, making it ideal for a wide range of automotive applications, including but not limited to, lights, heaters, and motors.
One of the standout features of this product is its built-in thermal shutdown protection, which ensures the device operates within safe temperature limits. Additionally, the VND7012AYTR-E includes current limitation, overvoltage clamp, and fast demagnetization of inductive loads, all of which contribute to the protection of the device under harsh operating conditions.
The device's load current limitation combined with the status feedback for each channel provides a smart operation mode, which is essential for sophisticated control systems where diagnostics are crucial. This feedback mechanism is invaluable for detecting and reacting to system faults, thereby enhancing the safety and reliability of the entire system.
STMicroelectronics has equipped the VND7012AYTR-E with an array of diagnostic functions. These include proportional load current sense, open load detection in OFF state, output short to VCC detection, and thermal shutdown indication. These diagnostics are accessible through a multiplexed analog output, which simplifies the interface with microcontrollers.
In conclusion, the VND7012AYTR-E from STMicroelectronics is a robust and intelligent high-side driver that offers a blend of protection features, diagnostics, and high power density, making it an excellent choice for those seeking a reliable solution for their high-side switching needs.
