Product Overview: AP22916CCA4-7 from Diodes Incorporated

The AP22916CCA4-7 is a high-performance, single-channel load switch developed by Diodes Incorporated, a leading global manufacturer and supplier of high-quality application-specific standard products within the broad discrete, logic, analog, and mixed-signal semiconductor markets. This load switch is designed to provide a compact and efficient solution for power distribution and management in various electronic devices.

Key Features

• Input Voltage Range: The device operates over an input voltage range of 1.4V to 5.5V, making it versatile for various low-voltage applications.
• Low On-Resistance: The low on-resistance of the switch (typically 52mΩ at 5V) ensures minimal voltage drop and power loss, enhancing the overall efficiency of the system.
• Current Limiting: Integrated current limiting protects the load and the power source from excessive current draw, enhancing system reliability.
• Fast Turn-On Time: With a fast turn-on time of 150μs, the AP22916CCA4-7 is well-suited for applications where quick power-up is essential.

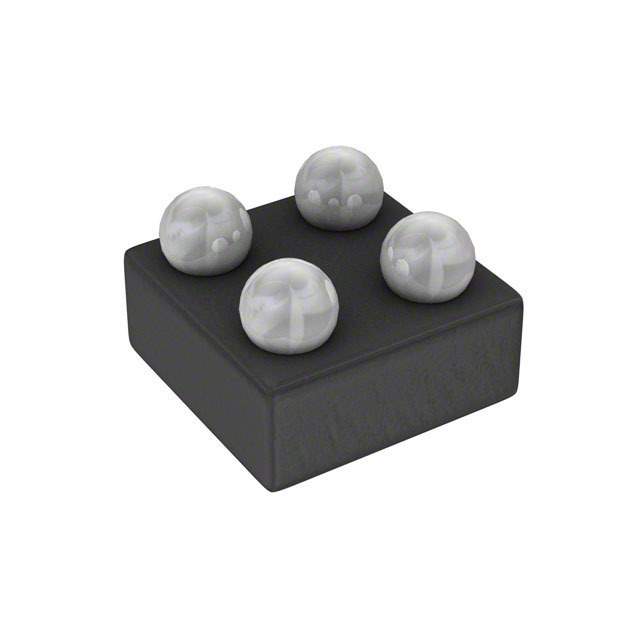

• Compact Package: The ultra-small X-WLB0909-4 package minimizes the PCB footprint, which is crucial for space-constrained applications.

Applications

The AP22916CCA4-7 is ideal for a range of applications that require efficient power distribution with load switching capability. Some common applications include:

• Smartphones and Tablets
• Portable Media Players
• Wearable Devices
• GPS Units
• Other Battery-Powered Devices

Quality and Reliability

Diodes Incorporated is committed to providing products that meet the highest standards of quality and reliability. The AP22916CCA4-7 is no exception, undergoing rigorous testing and quality control processes to ensure it meets the industry specifications and customer expectations.

Ordering Information

The AP22916CCA4-7 is available for order, and can be sourced directly through Diodes Incorporated or their authorized distributors. For detailed product specifications, technical documentation, and ordering information, customers should refer to the official Diodes Incorporated website or contact their customer service team.
