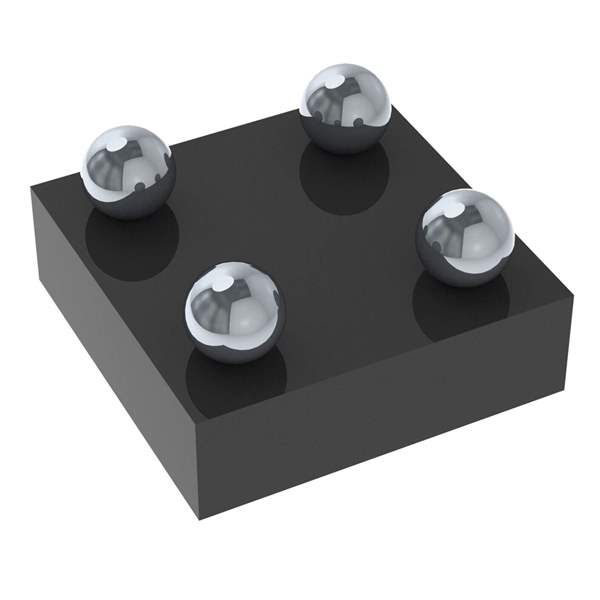

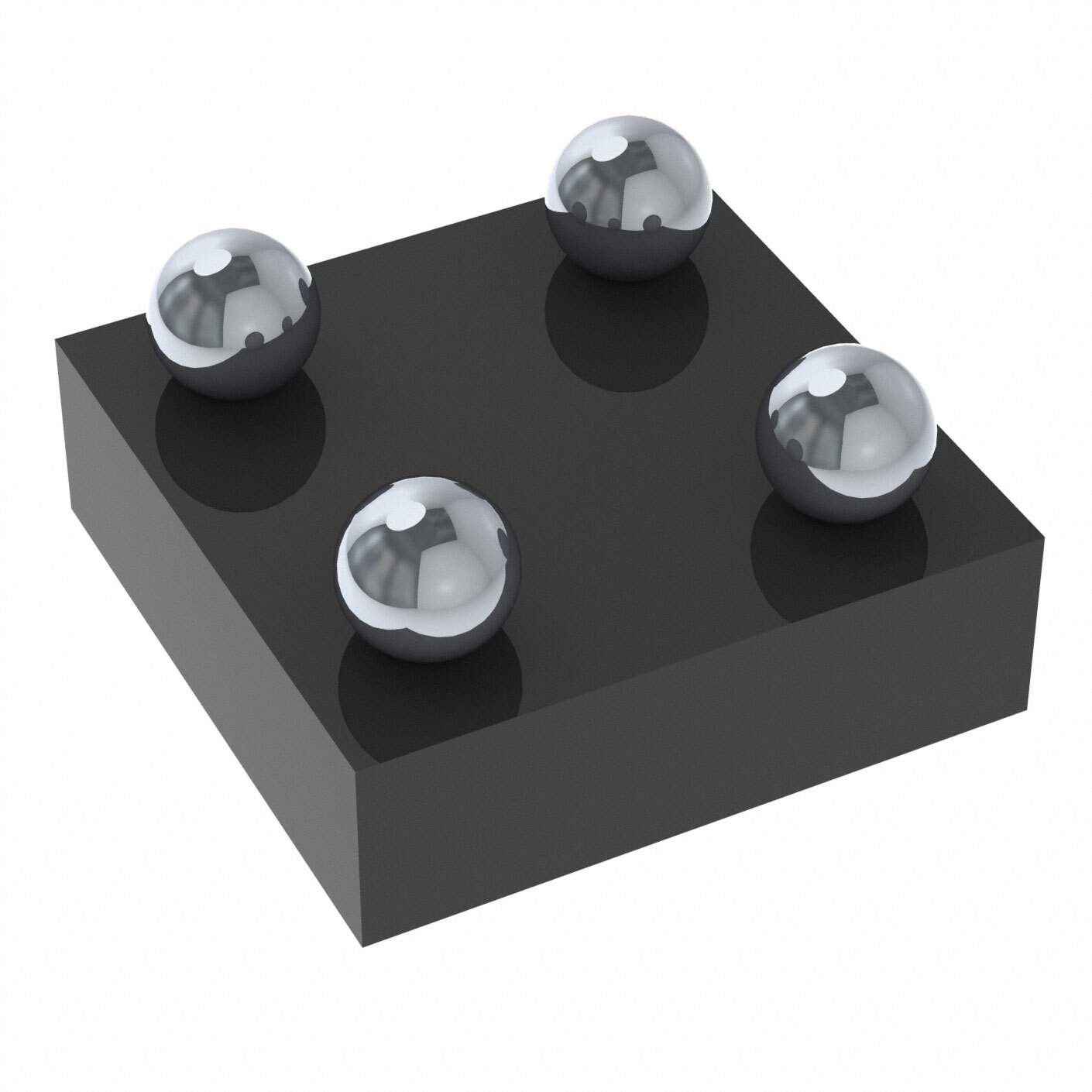

Product Overview: AP22913CN4-7-36 by Diodes Incorporated

The AP22913CN4-7-36 is a high-performance, single-channel load switch designed and manufactured by Diodes Incorporated, a leading global provider of discrete, logic, analog, and mixed-signal semiconductors. This load switch is engineered to provide a compact and efficient solution for power distribution and management in a wide array of electronic devices and systems.

Key Features

• Input Voltage Range: The device supports a wide input voltage range, typically accommodating voltages from 1.1V to 5.5V, making it versatile for various applications.
• Low On-Resistance: The AP22913CN4-7-36 boasts a low on-resistance (R_ON), which minimizes power loss and improves efficiency in power delivery.
• Current Limiting: It integrates a current limiting feature that protects the circuit by preventing excessive current from flowing through the switch.
• Quick Output Discharge: The device includes a quick output discharge function that ensures the output is rapidly discharged when the switch is turned off, preventing any potential damage from lingering voltage.
• Controlled Slew Rate: The controlled slew rate of the AP22913CN4-7-36 reduces inrush current, which is beneficial in applications sensitive to current spikes.
• Compact Package: The load switch is offered in a small 1mm x 1.5mm X2-DFN1410-6 package, which is ideal for space-constrained applications.

Applications

The AP22913CN4-7-36 is suitable for a variety of applications, including but not limited to:

• Smartphones and portable electronics
• IoT devices
• Wearable technology
• Healthcare monitoring devices
• Power management modules

Product Benefits

This load switch from Diodes Incorporated is designed to meet the needs of modern electronic systems that require efficient power distribution and management. With its low on-resistance, current limiting, and quick output discharge, the AP22913CN4-7-36 ensures reliable operation and extends the battery life of portable devices. Additionally, the small package size allows designers to save board space and reduce the overall footprint of their systems.

Whether you are developing consumer electronics, industrial solutions, or medical devices, the AP22913CN4-7-36 offers a high-quality, reliable solution for your power switching needs.
