The AP22908CN4-7 is a high-performance, single-channel load switch designed by Diodes Incorporated, a leading global manufacturer and supplier of high-quality application-specific standard products within the broad discrete, logic, analog, and mixed-signal semiconductor markets. This advanced switch is engineered to offer efficient power distribution and management for a wide array of electronic devices.

Key Features

• Input Voltage Range: The device supports an input voltage range of 1.2V to 5.5V, making it versatile for various low-voltage applications.
• Low On-Resistance: The AP22908CN4-7 has an ultra-low on-resistance (R_ON) of typically 28mΩ at 5V, which minimizes power loss and improves efficiency.
• Current Limiting: It features a current limiting function to protect the power source and load from overcurrent conditions.
• Fast Turn-On Time: The device ensures swift operations with a typical turn-on time of 16μs, facilitating quick power-up sequences.
• Controlled Slew Rate: The switch has a controlled slew rate to reduce inrush current, which helps in mitigating potential voltage drops and electromagnetic interference (EMI).
• Under-Voltage Lockout (UVLO): The built-in UVLO feature ensures that the switch operates only when the input voltage is within the acceptable range, enhancing system reliability.
• Low Quiescent Current: It boasts a low quiescent current of 1μA (max), contributing to energy savings in standby mode.

Applications

The AP22908CN4-7 is suitable for a broad range of applications, including but not limited to:

• Smartphones and Portable Devices
• IoT Devices
• Notebook Computers
• Battery Management Systems
• Power Distribution Networks

Product Specifications

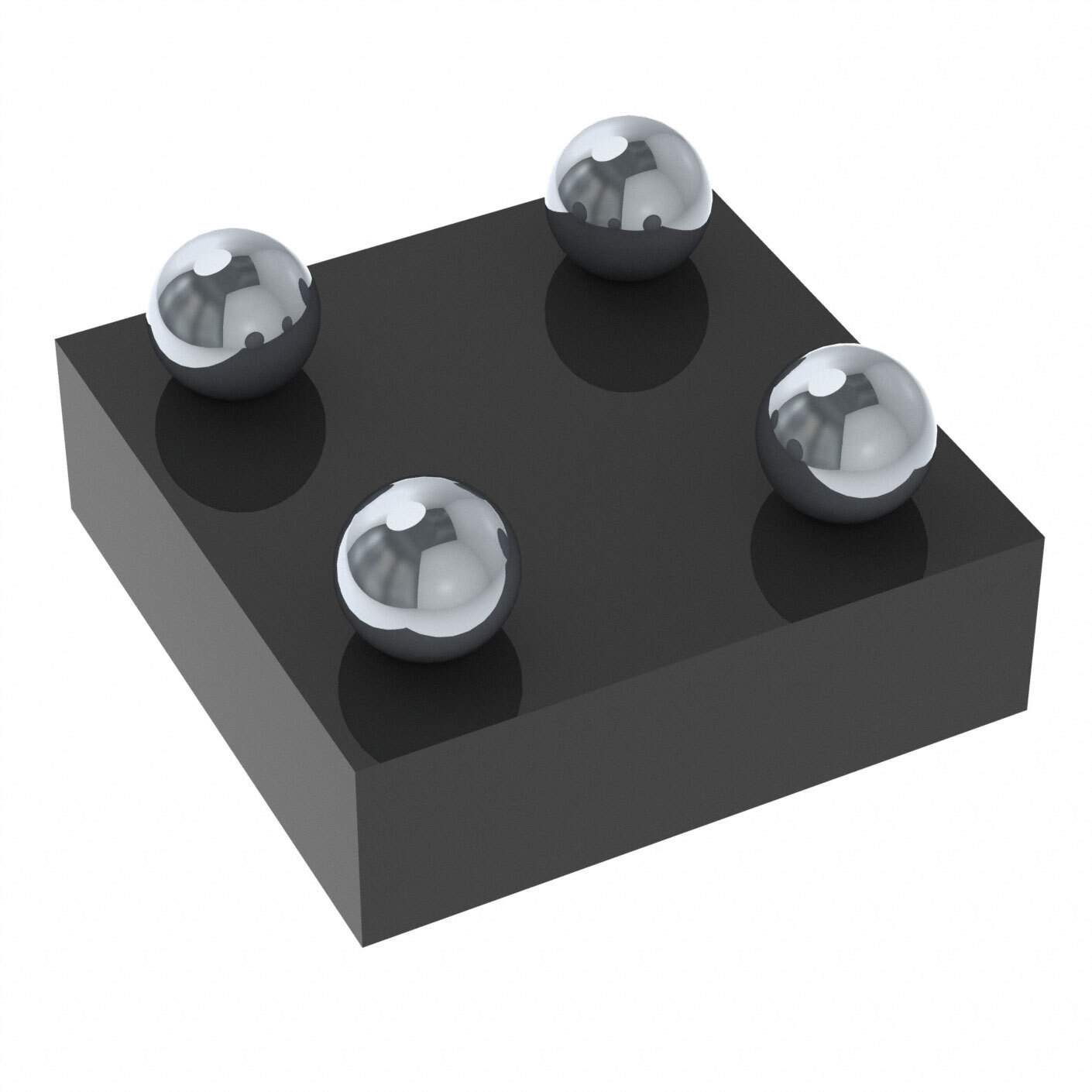

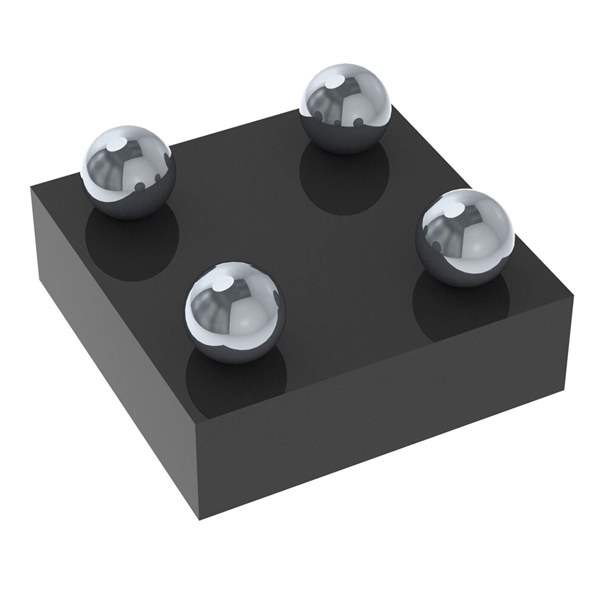

This load switch is offered in a compact package (X-WLB0808-4) and is characterized by its low thermal resistance, ensuring reliable performance even in space-constrained applications. The AP22908CN4-7 is also RoHS compliant, reflecting Diodes Incorporated's commitment to environmental sustainability.

For detailed technical specifications, application notes, and support documentation, customers are encouraged to visit the official Diodes Incorporated website or contact their sales representatives.
