Product Overview: VND5E004A30TR-E from STMicroelectronics

The VND5E004A30TR-E is a high-performance automotive-grade double-channel high-side driver manufactured by STMicroelectronics, designed to deliver robust and efficient control for a wide range of automotive applications. This device is part of the VIPower M0-5 family and is particularly well-suited for driving resistive, inductive, and capacitive loads.

Key Features

• High-Side Switch: The VND5E004A30TR-E operates as a high-side switch, which allows for direct interfacing with the microcontroller.
• Output Current Capability: Each channel of the device can handle a continuous load current of up to 30A, making it suitable for high-power applications.
• Low Standby Power Consumption: Designed with energy efficiency in mind, the device ensures low power consumption when in standby mode.
• Over-temperature Protection: The device is equipped with over-temperature shutdown to prevent damage from overheating.
• Load Current Limitation: The VND5E004A30TR-E features active current limitation to protect against excessive current draw.
• Status Feedback: Diagnostic feedback is provided for each channel, which helps in monitoring the system's performance and any fault conditions.
• Compliance: The device is fully compliant with the ISO 26262 automotive safety standard, ensuring reliability for automotive safety-critical applications.

Applications

The versatility of the VND5E004A30TR-E makes it ideal for a variety of automotive applications, including but not limited to:

• Automotive LED lighting
• Heating systems
• Automotive power distribution
• Motor and solenoid driving

Package and Quality

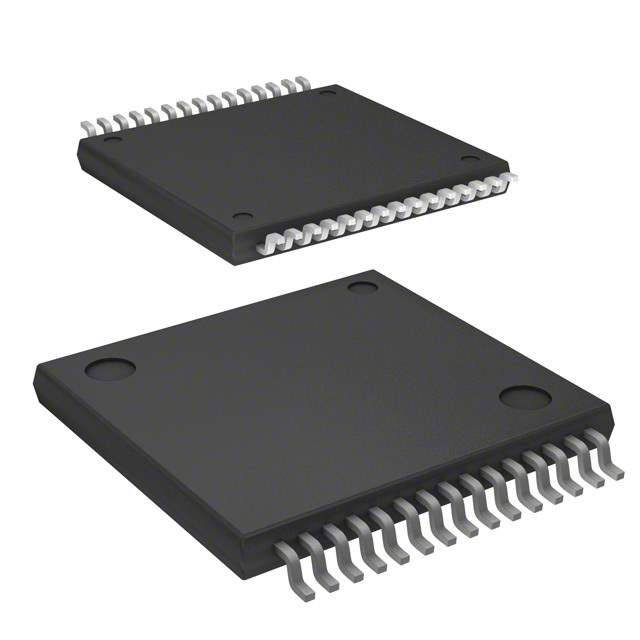

The VND5E004A30TR-E comes in a compact and robust PowerSSO-36 package, which is designed to optimize the thermal performance and minimize the PCB space required. The device meets the stringent AEC-Q100 qualification requirements for automotive applications, ensuring high reliability and performance under harsh automotive operating conditions.
