The VN5050AJTR-E is a high-side driver manufactured by STMicroelectronics, designed to deliver outstanding performance in the management and control of automotive loads. This device is part of the VIPower M0-5 family and is specifically tailored to drive various types of loads with enhanced efficiency and reliability.

Key Features

• Load Current Capability: The VN5050AJTR-E can handle a continuous load current of up to 13 A, making it suitable for a wide range of applications that require high current handling capabilities.
• High Voltage Flexibility: It operates over a broad voltage range, from 5.5 V to 36 V, accommodating the needs of various automotive electrical systems.
• Thermal Protection: With built-in thermal shutdown, the device ensures protection against overheating, enhancing the safety and longevity of the application.
• Current Limitation: The VN5050AJTR-E features active current limitation to prevent damage from overcurrent conditions, further safeguarding the device and the load.
• Diagnostic Functions: Integrated diagnostic functions provide feedback on the status of the device and the load, allowing for advanced monitoring and fault detection.
• Low Standby Power Consumption: The device is designed to have low standby current, which is crucial for reducing power consumption, especially in battery-powered applications.

Applications

The VN5050AJTR-E is ideal for a variety of automotive applications, including but not limited to:

• Lamp driving
• DC motor control in powertrain, body control, or HVAC systems
• Resistive and inductive loads in automotive environments

Package and Quality

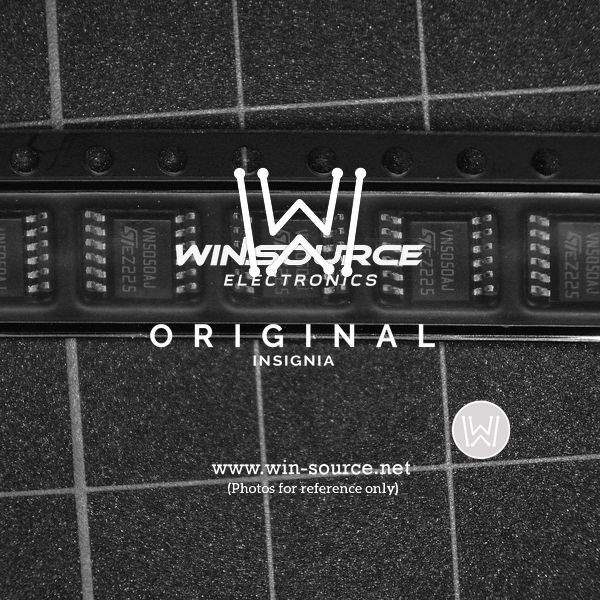

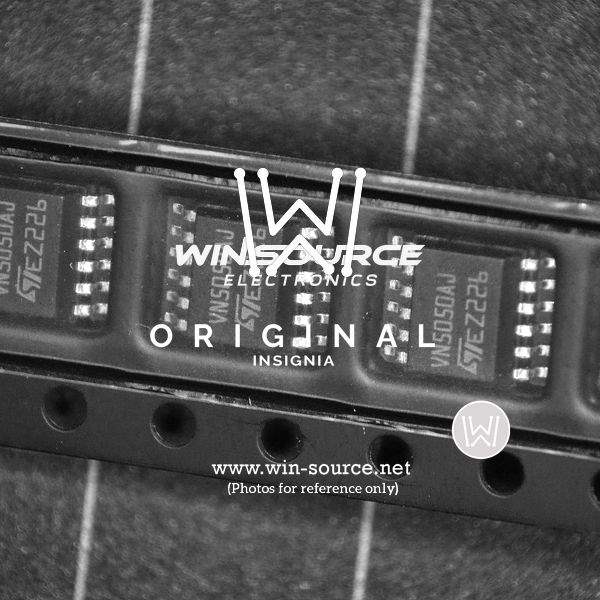

The VN5050AJTR-E comes in a compact and robust PowerSSO-16 package, which ensures space-saving on the PCB while providing excellent thermal performance. It is compliant with the most stringent automotive quality standards, including AEC-Q100, which confirms its suitability for automotive applications that demand high reliability.

Overall, the VN5050AJTR-E by STMicroelectronics represents a state-of-the-art solution for driving high-side loads in automotive environments, offering a combination of performance, protection features, and diagnostic capabilities.
