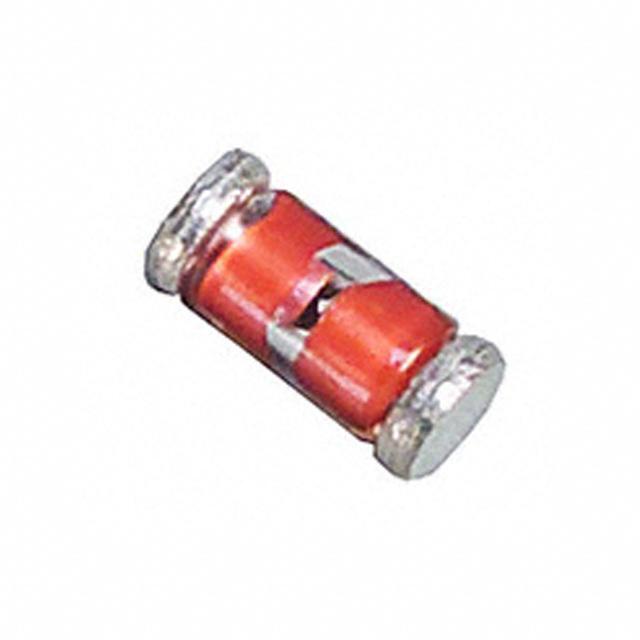

STMicroelectronics TMMBAT48FILM Schottky Diode

The TMMBAT48FILM, manufactured by STMicroelectronics, is a high-efficiency Schottky diode designed for a variety of applications where fast switching and low forward voltage drop are required. This diode is particularly suitable for use in high-frequency inverters, DC-DC converters, and freewheeling diodes in various electronic circuits.

Constructed with silicon technology, the TMMBAT48FILM offers excellent switching performance with a low forward voltage drop, thereby minimizing power loss and improving overall system efficiency. This diode is capable of conducting up to 350mA of continuous forward current (IF), making it a robust choice for a wide range of power management tasks.

With its small surface-mount package, the TMMBAT48FILM is ideal for compact circuit designs. The device comes in a SOD-123 flat package, which is not only space-saving but also allows for efficient heat dissipation. The slim profile of the diode ensures that it can be integrated into space-constrained applications without compromising performance.

The TMMBAT48FILM operates effectively over a wide temperature range, with a junction temperature (Tj) ranging from -65°C to +125°C, ensuring reliability and stability even under extreme conditions. This feature makes it well-suited for industrial and automotive applications that require components to withstand harsh environments.

Key Features of the TMMBAT48FILM:

• Low forward voltage drop (VF)
• High junction temperature capability (Tj = -65°C to +125°C)
• 350mA continuous forward current (IF)
• Fast switching capabilities
• Surface-mount SOD-123 package for compact design
• Compliance with RoHS and REACH directives

STMicroelectronics has designed the TMMBAT48FILM with an eye toward environmental sustainability, ensuring that the product meets RoHS and REACH directives, which restricts the use of certain hazardous substances in electrical and electronic equipment.

In summary, the TMMBAT48FILM Schottky diode from STMicroelectronics is a reliable and efficient component that meets the needs of modern electronic designs requiring high-speed switching and minimal power loss. Its robust performance and small footprint make it an excellent choice for designers looking to optimize their power management solutions.
