STMicroelectronics TDA8174A Vertical Deflection Booster

The TDA8174A, manufactured by STMicroelectronics, is a high-performance vertical deflection booster designed for use in television and monitor applications with CRT displays. This integrated circuit (IC) is specifically engineered to drive the vertical deflection yoke of the CRT with high precision, providing a clear and stable image on the screen.

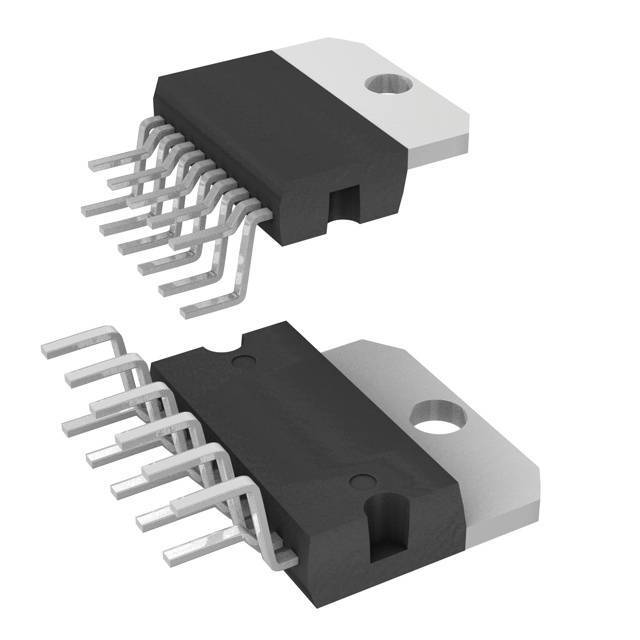

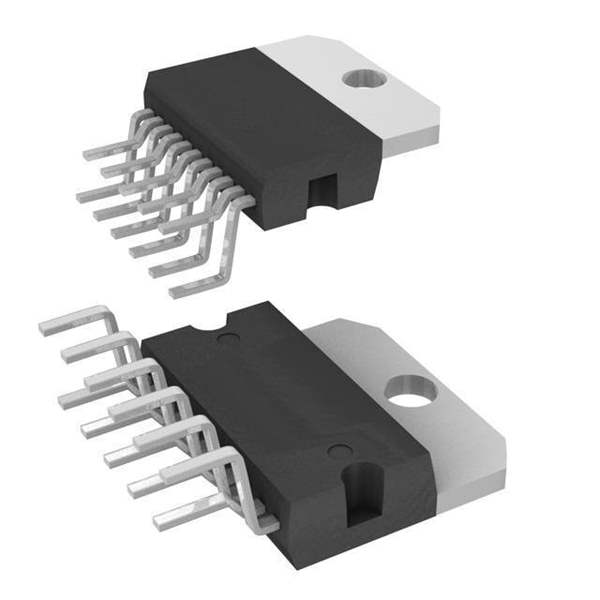

The TDA8174A is a monolithic integrated circuit in Heptawatt package, intended for use as a class AB power amplifier with high current capability and the ability to handle significant power loads. The device is capable of providing a high output current while maintaining a low saturation voltage, making it highly efficient for its intended purpose.

Key Features:

• Power Amplifier with Flyback Generator
• High Output Current: Up to 3.0A (p-p)
• Low Thermal Resistance
• Thermal Protection
• Low Saturation Voltage
• High Efficiency

Applications:

• Television Sets
• Monitors
• Display Units Requiring Vertical Deflection

The TDA8174A provides a range of protection features, ensuring reliability and longevity. Its built-in thermal protection safeguards the IC from overheating, while the low saturation voltage feature ensures that power dissipation is minimized, enhancing the overall efficiency of the system. The high current capability of the TDA8174A makes it ideal for larger screen sizes where higher deflection currents are necessary.

This IC is designed to be simple to implement within a variety of CRT-based display systems. Its versatility and robust performance make the TDA8174A an excellent choice for manufacturers looking to produce high-quality televisions and monitors with reliable vertical deflection capabilities.

For detailed specifications, application notes, and additional information, designers and engineers are encouraged to consult the official datasheet and support documentation provided by STMicroelectronics.
