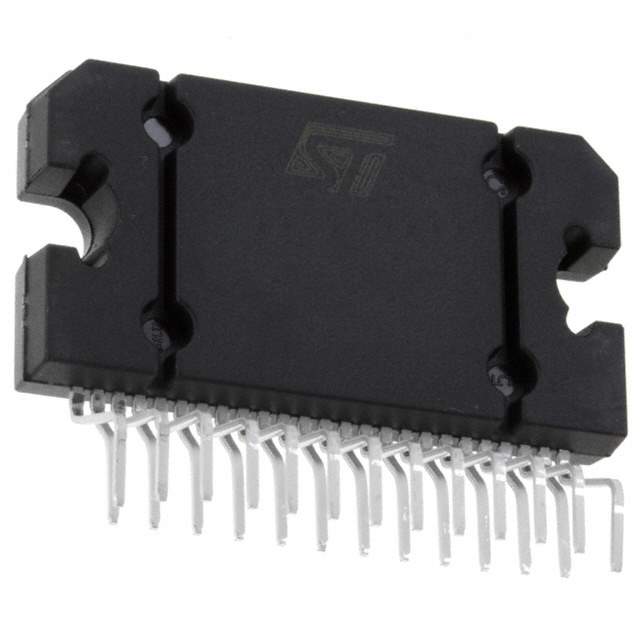

The TDA7386 from STMicroelectronics is an advanced BCD (Bipolar CMOS DMOS) technology class AB Audio Power Amplifier designed to deliver a high-quality sound experience for automotive audio applications. This robust IC is capable of providing a significant amount of power, with a maximum output of 4 x 45 W into 4 ohms load. It is a highly efficient solution that ensures low distortion and low output noise, making it ideal for in-car entertainment systems.

Key Features

• High Output Power: Capable of delivering 4 x 45W into 4 ohms.
• Flexibility: The TDA7386 allows for bridge-tied load (BTL) operation as well as single-ended audio outputs, providing flexibility in various audio configurations.
• Mute and Standby Functions: These features enable the user to reduce power consumption and extend the life of the product.
• Minimal External Components: The design of the TDA7386 requires fewer external components, simplifying the design and reducing the overall bill of materials.
• Protection Systems: It includes a full set of protections such as short-circuit, thermal shutdown, and load dump voltage surge protection, ensuring the reliability and longevity of both the IC and the audio system it powers.

Applications

The TDA7386 is primarily used in car radio applications, but it can also be found in other audio systems where high power and efficiency are required. Its robustness makes it suitable for challenging environments, ensuring consistent performance regardless of the conditions.

Quality and Reliability

STMicroelectronics is known for its commitment to quality, and the TDA7386 is manufactured to meet the high standards expected from automotive-grade components. With its advanced protections and high reliability, the TDA7386 stands out as a trustworthy choice for automotive audio solutions.

Conclusion

In summary, the TDA7386 is a powerful and reliable audio amplifier that offers high performance with minimal external components. Its flexibility, efficiency, and robust protection features make it an excellent choice for automotive audio systems and other applications requiring a high-quality sound output.
