The TDA7491HV is a cutting-edge audio amplifier integrated circuit from STMicroelectronics, renowned for its high-quality semiconductor solutions. This particular product is designed to deliver exceptional audio performance with high efficiency, making it an ideal choice for a wide range of applications including LCD TVs, docking stations, and digital audio systems.

Key Features

• Amplifier Type: The TDA7491HV is a class-D amplifier, known for its high power efficiency and low heat generation.
• Output Power: It can deliver up to 20 Watts per channel into an 8-ohm load, providing robust sound output for most audio applications.
• Supply Voltage: The chip operates over a wide supply voltage range from 8V to 26V, offering flexibility in various power environments.
• Dual-Mode Functionality: This IC supports single-ended or bridge-tied load (BTL) configurations, allowing designers to choose the best mode for their specific application.
• Protection Features: The TDA7491HV includes a plethora of protection mechanisms such as short-circuit protection, thermal overload protection, and a clip detector, ensuring reliable and safe operation.

Performance and Efficiency

The TDA7491HV stands out for its high-efficiency operation, which reduces energy consumption and minimizes the need for heat dissipation. This makes it suitable for compact and portable devices where space and power are at a premium. With its advanced PWM (Pulse Width Modulation) technology, the TDA7491HV ensures high-quality audio reproduction with minimal distortion.

Design and Integration

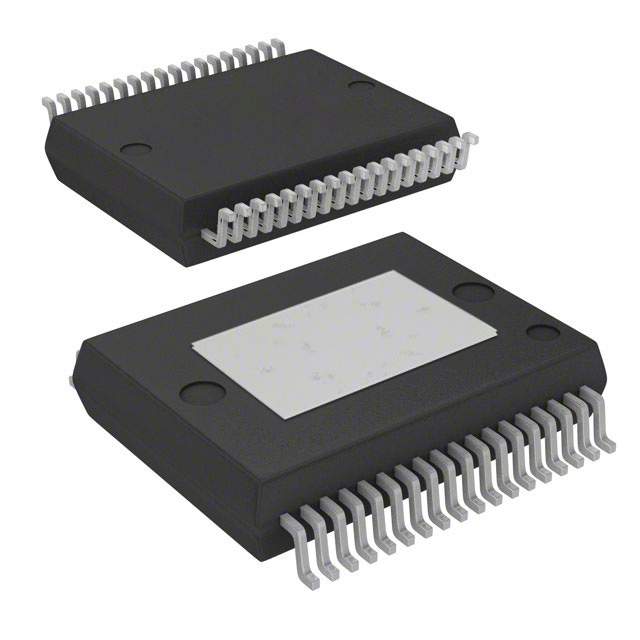

STMicroelectronics has designed the TDA7491HV with ease of integration in mind. It comes in a compact PowerSSO-36 package, which is both space-saving and suitable for automated assembly processes. The integrated circuit is also designed with a simple external circuitry requirement, allowing for a streamlined design process and rapid time-to-market for products incorporating this IC.

Applications

The versatility of the TDA7491HV makes it a perfect choice for a variety of audio applications. Its performance and size are particularly well-suited for:

• Home audio systems
• Active speakers
• Soundbars and docking stations
• Portable PA systems
• Other audio electronics requiring a compact, high-efficiency amplifier
