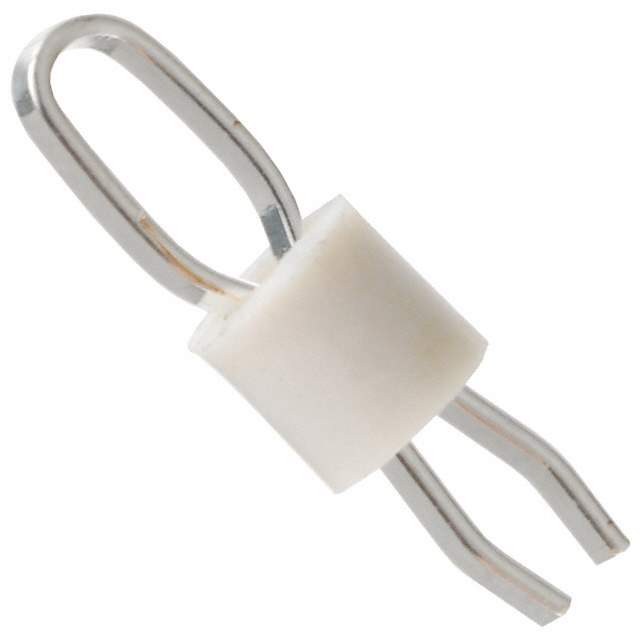

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Test and Measurement - Test Points
Mfr Keystone Electronics
Series THM
Package Bulk
Product Status Active
Type PC Test Point, Multipurpose
Mounting Type Through Hole
Color White
Hole Diameter 0.063" (1.60mm)
Size / Dimension 0.125" Dia x 0.320" L (3.18mm x 8.13mm)
Plating Silver
Material - Insulation Nylon 46, UL 94V-0
Material - Body Phosphor Bronze
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 856250-5012
Ultra Librarian 3D Model Ultra Librarian 5012 CAD Model

Description

The 856250-5012 is a white PC test point designed for test and measurement applications from Keystone Electronics.

  • Series: THM series
  • Type: Multipurpose test point
  • Diameter: 0.125" (3.18mm)
  • Length: 0.320" (8.13mm)
  • Material: Nylon 46 with UL 94V-0 insulation
  • Package: Bulk package of 100 pcs
  • Plating: Silver
  • Body: Phosphor bronze
