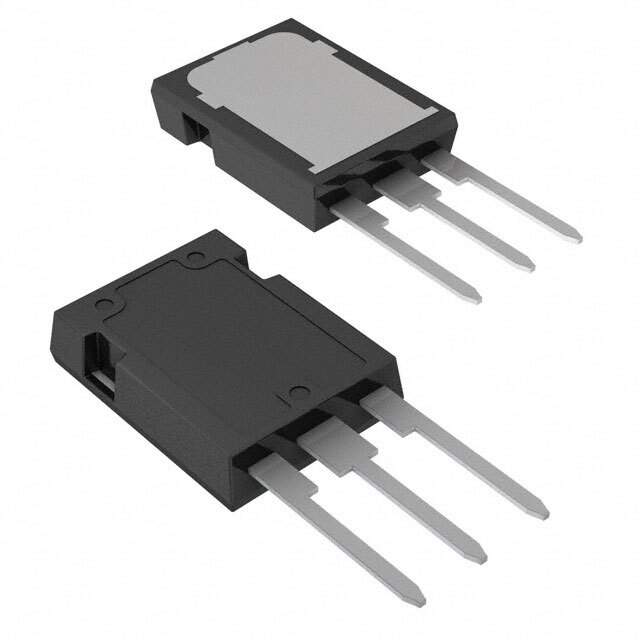

The STY60NM60 is a state-of-the-art N-Channel MOSFET presented by STMicroelectronics, designed to deliver high efficiency and power density for a wide range of applications. This power MOSFET is part of ST's MDmesh™ series, which is renowned for its excellent on-state resistance (R<sub>DS(on)) characteristics in relation to the silicon area, as well as reduced gate charge (Q<sub>g), making it an ideal choice for high-efficiency solutions.

Key Features

• Maximum Drain-Source Voltage (V<sub>DSS): 600V
• Continuous Drain Current (I<sub>D): 40A
• Low On-Resistance: Typically 0.065 Ω
• High dv/dt and avalanche capabilities
• High frequency operation
• Low gate charge and input capacitance
• 100% avalanche tested
• Zener-protected

Applications

The STY60NM60 is versatile and can be used in a variety of applications, including:

• Switch Mode Power Supplies (SMPS)
• High Current Switching
• Power Factor Correction (PFC) circuits
• Electronic Ballasts for Fluorescent Lighting
• Welding Equipment
• UPS Systems
• Motor Control

Performance and Reliability

With the STY60NM60, designers can expect low conduction losses thanks to the low on-state resistance, which enhances overall efficiency, especially in high-current applications. The device also features a robust design that withstands harsh conditions, ensuring reliable performance and a longer lifespan.

Environmental and Quality Standards

STMicroelectronics is committed to environmental sustainability, and the STY60NM60 adheres to international standards, including RoHS and REACH compliance, ensuring minimal environmental impact. Additionally, the product meets high-quality standards, offering reliability and performance consistency.

For detailed specifications, technical documentation, and application support, visit the STMicroelectronics website or contact your local ST sales office.
