STP08DP05XTTR - Low Voltage 8-Bit Constant Current LED Sink Driver

The STP08DP05XTTR is a cutting-edge LED sink driver from STMicroelectronics, tailored to deliver constant current output to ensure uniform brightness for LED displays. This product is part of the STP08DP05 series, which is renowned for its efficiency and reliability in driving LED arrays.

Key Features

• Output Current: Each of the 8 channels provides a constant current output, which can be adjusted from 5 mA to 100 mA, allowing for precise control over the brightness of connected LEDs.
• Low Voltage Operation: The device operates at a low voltage, with a typical supply voltage of 3.3V to 5V, making it suitable for portable and battery-powered applications.
• Serial Interface: The STP08DP05XTTR includes a 3-wire serial interface for data input, which is compatible with SPI, QSPI, and MICROWIRE protocols, enabling easy integration with a wide range of microcontrollers.
• Error Detection: It features an error detection circuit that monitors the state of the LEDs, providing feedback in case of open-circuit or short-circuit conditions, thus enhancing system reliability.
• Thermal Shutdown: The built-in thermal shutdown protection prevents damage to the device from overheating, ensuring a longer operational lifespan.

Applications

The STP08DP05XTTR is ideal for a variety of applications where consistent LED illumination is crucial. These include:

• LED Display Panels
• Variable Message Signs
• Advertising and Mood Lighting
• Commercial and Industrial Lighting
• Automotive Dashboard and Tail Lights

Package and Quality

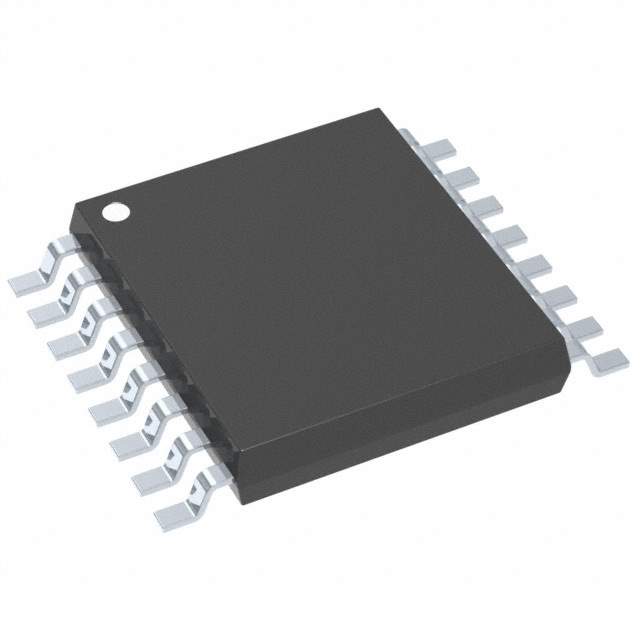

The device comes in a TSSOP16 package, which is compact and suitable for space-constrained applications. It is also specified for an extended temperature range from -40°C to +85°C, making it versatile for different operating environments. Manufactured by STMicroelectronics, a leader in semiconductor solutions, the STP08DP05XTTR is built to high-quality standards, ensuring performance and durability for demanding applications.

With its blend of features, the STP08DP05XTTR is an excellent choice for designers looking to create advanced, efficient, and reliable LED lighting solutions.
