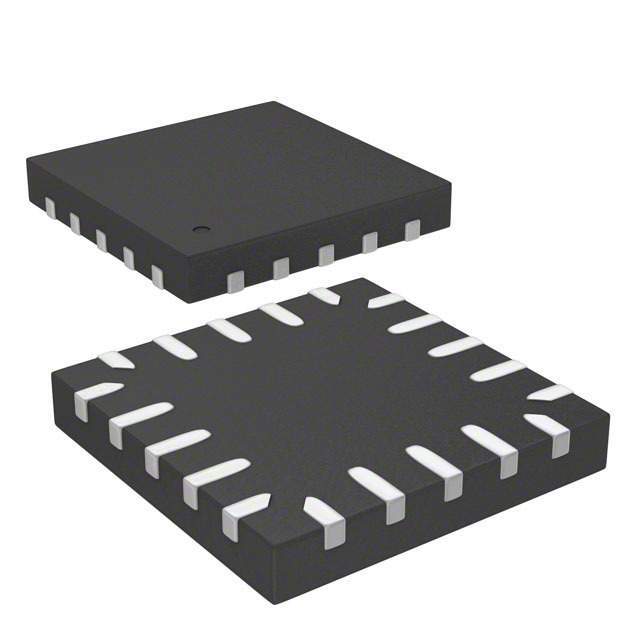

The STM8S103F2U6TR is a high-performance microcontroller from STMicroelectronics, designed to deliver the perfect balance between performance, power consumption, and cost-effectiveness. This device is part of the STM8S series, which is renowned for its robust architecture and ease of use, making it an ideal choice for a wide range of applications in the consumer, automotive, and industrial markets.

Key Features

• Core: STM8 core running at up to 16 MHz
• Flash memory: 4 Kbytes with read-while-write support
• RAM: 1 Kbyte
• Data EEPROM: 128 bytes
• Timers: Advanced control timer, two general-purpose timers, and an 8-bit basic timer
• Communication interfaces: Integrated UART, SPI, and I2C interfaces for full-duplex communication
• 10-bit ADC: With up to five channels for analog input
• I/O pins: Up to 16 GPIOs for versatile digital interfacing
• Supply voltage: 2.95 V to 5.5 V, suitable for a variety of power environments
• Temperature range: -40°C to +85°C, ensuring reliable operation under extreme conditions

Advanced Peripherals

The STM8S103F2U6TR is equipped with a range of integrated peripherals that enhance its functionality and reduce the need for external components. These include an advanced control timer for complex waveform generation, a real-time clock for time-sensitive applications, and a bevy of communication interfaces for easy data exchange with other devices.

Development Support

STMicroelectronics provides extensive support for the STM8S103F2U6TR with a comprehensive set of development tools, software libraries, and documentation. This support ensures a smooth development process from initial design to final product deployment, making it easier for engineers to bring their innovative ideas to life.

Applications

With its robust feature set and flexible I/O options, the STM8S103F2U6TR is well-suited for a variety of applications, including:

• Consumer electronics
• Home appliances
• Automotive systems
• Industrial controls
• Lighting systems

In summary, the STM8S103F2U6TR offers a compelling combination of performance, power efficiency, and cost-effectiveness, making it a smart choice for your next microcontroller-based project.
