Products specifications

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr STMicroelectronics
Series STM8L EnergyLite
Package Tape & Reel
Core Processor STM8
Core Size 8-Bit
Speed 16MHz
Connectivity I2C, IrDA, SPI, UART/USART
Peripherals Brown-out Detect/Reset, DMA, IR, LCD, POR, PWM, WDT
Number of I/O 28
Program Memory Size 64KB (64K x 8)
Program Memory Type FLASH
EEPROM Size 2K x 8
RAM Size 4K x 8
Supply Voltage - Operating 1.8V ~ 3.6V
Data Converters A/D 20x12b; D/A 1x12b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 32-UFBGA, WLCSP
Base Product Number STM8
Other Names 497-16567-1,497-16567-2,497-16567-6
Standard Package 5,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001
Win Source Part Number 1262092-STM8L152K8Y6TR
Ultra Librarian 3D Model Ultra Librarian STM8L152K8Y6TR CAD Model

Description

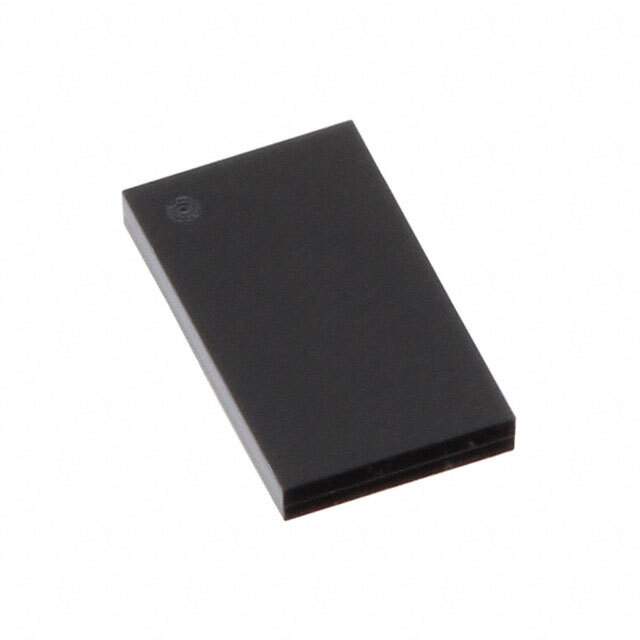

STMicroelectronics STM8L152K8Y6TR Microcontroller

The STM8L152K8Y6TR is a high-performance microcontroller from STMicroelectronics, designed to offer an optimal balance between performance, power consumption, and cost-effectiveness. This device belongs to the STM8L ultra-low-power family, which is engineered to operate in power-sensitive applications. It is particularly well-suited for use in battery-operated devices, energy management systems, and sensor hubs, among other applications.

This microcontroller is based on the advanced STM8 core, operating at a frequency of up to 16 MHz. It comes with 64 Kbytes of Flash memory, which provides ample space for complex application code and data storage. The device also features 2 Kbytes of RAM and 1 Kbyte of EEPROM, which are essential for efficient data manipulation and parameter storage that must survive power cycles.

The STM8L152K8Y6TR includes a rich set of peripherals that enhance its versatility. It has an integrated 12-bit analog-to-digital converter (ADC) with up to 28 channels, allowing for precise measurement of analog signals. The inclusion of comparators, liquid crystal display (LCD) drivers, and a real-time clock (RTC) with alarm and periodic wakeup from halt or active halt modes, further extends the capabilities of this microcontroller for various time-sensitive and display-related tasks.

Communication with other devices is made possible through multiple interfaces, including I2C, SPI, and USART, which facilitate serial data exchange with sensors, actuators, and other microcontrollers. Additionally, the STM8L152K8Y6TR features a USB 2.0 full-speed interface for connectivity with USB host devices and for programming and debugging purposes.

STMicroelectronics has taken significant measures to ensure the STM8L152K8Y6TR's energy efficiency. The microcontroller supports five low-power modes, which enable it to conserve power when not all functions are required to be active. These modes, along with the device's low-power reset and ultra-low-power oscillator, make it an ideal choice for designs where energy conservation is paramount.

In summary, the STM8L152K8Y6TR from STMicroelectronics is a feature-rich and power-efficient microcontroller that offers a wide range of functionalities for complex and power-conscious applications. Its robust peripheral set, ample memory, and low-power capabilities make it a smart choice for designers looking to create sophisticated yet energy-efficient products.
