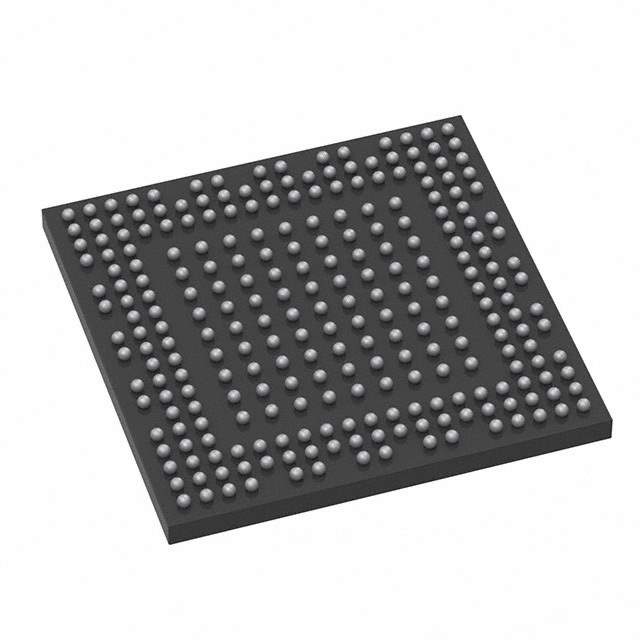

STM32MP153FAD1 Microprocessor Overview

The STM32MP153FAD1 is a highly capable microprocessor from STMicroelectronics, designed to offer a perfect blend of real-time processing through its dual Arm® Cortex®-A7 cores and power efficiency with a Cortex®-M4 core. This versatile microprocessor is part of the STM32MP1 series, engineered to serve a wide range of applications, particularly in the industrial, consumer, and health markets.

Key Features

• Processing Power: The dual Cortex®-A7 cores can run up to 800 MHz, providing substantial performance for complex applications, while the Cortex®-M4 core runs up to 209 MHz, ideal for real-time tasks.
• Memory: It comes with 708 Kbytes of internal RAM and various external memory interfaces, including DDR3L, LPDDR2, LPDDR3, and eMMC, for flexible storage solutions.
• Rich Connectivity: The STM32MP153FAD1 supports a wide range of I/Os, including multiple USB2.0 ports, a Gigabit Ethernet port, and several other communication interfaces like I2C, SPI, UART, CAN, and more.
• Graphics Support: It features a 3D GPU with OpenGL ES 2.0 support, enabling the development of graphical user interfaces and applications with 3D graphics requirements.
• Security: Security features include hardware cryptographic acceleration, secure boot, and TrustZone for ARMv7-M.
• Power Management: The microprocessor provides various power-saving modes, making it suitable for power-conscious designs.

Applications

The STM32MP153FAD1 is highly adaptable and can be used in a variety of applications such as:

• Industrial control systems
• Internet of Things (IoT) devices
• Consumer electronics
• Medical equipment
• Home automation
• Complex user interfaces

With its robust architecture, the STM32MP153FAD1 allows designers to strike an optimal balance between performance and power consumption, making it an excellent choice for sophisticated and integrated designs that require multitasking and real-time operation.
