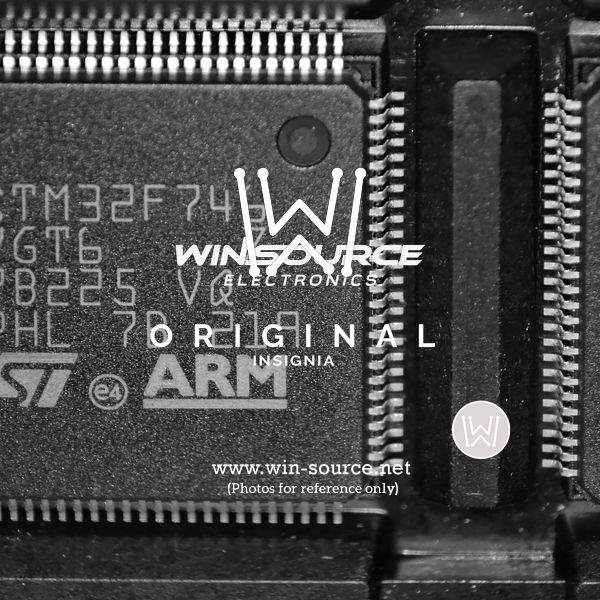

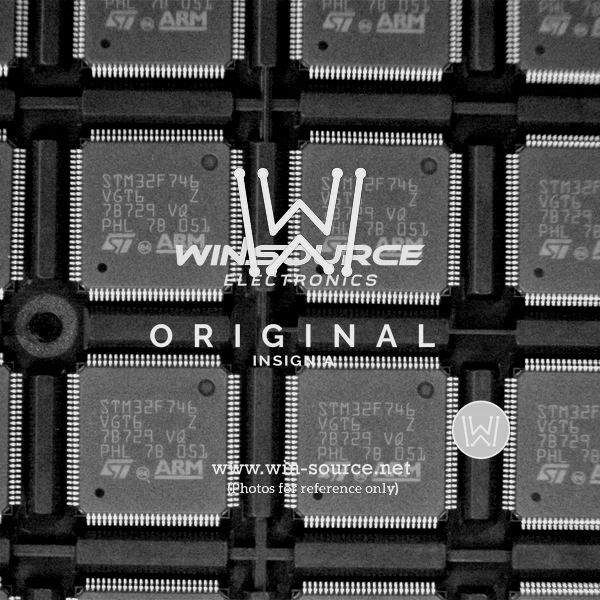

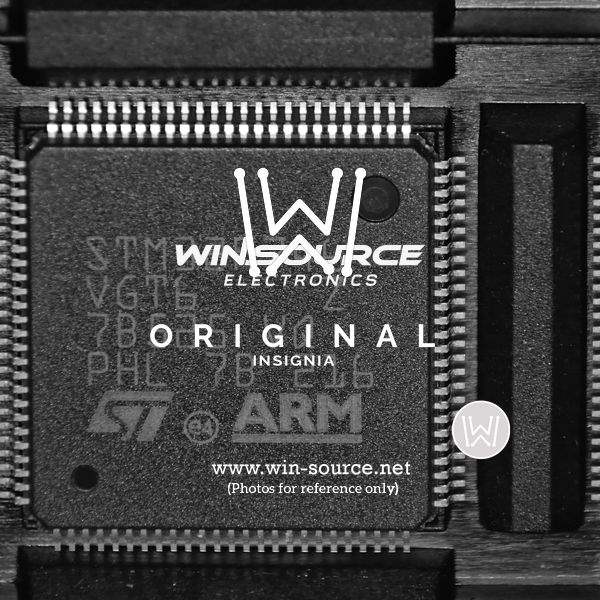

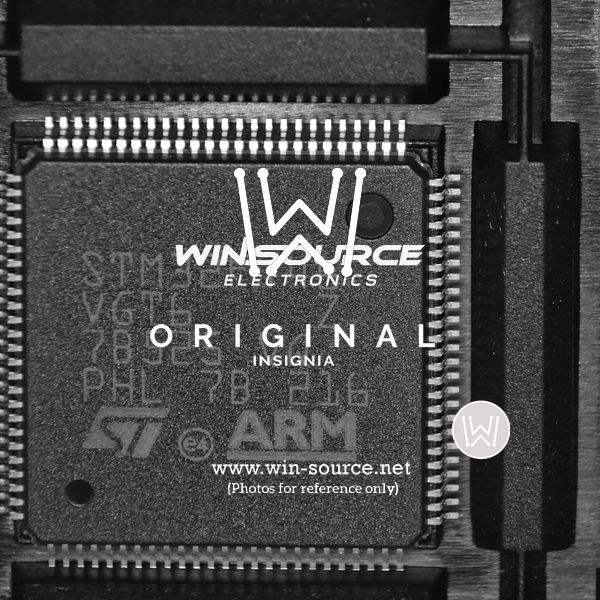

STM32F746VGT6 Microcontroller - STMicroelectronics

The STM32F746VGT6 is a high-performance, advanced line microcontroller, part of the STM32F7 series from STMicroelectronics. This state-of-the-art product is based on the ARM Cortex-M7 processor with double-precision floating point unit, delivering the maximum theoretical performance of the ARM Cortex-M7 core at 216 MHz, which is 462 DMIPS/1082 CoreMark in a very compact LQFP100 package.

With a rich set of peripherals and high-speed interconnects, the STM32F746VGT6 is designed for a wide range of application needs. It features 1 Mbyte of Flash memory, 320 Kbytes of SRAM, and further capabilities for flexible memory expansion through the Flexible Memory Controller (FMC) and the Quad-SPI interface. This enables the microcontroller to handle complex algorithms and applications that require large memory resources, such as graphical user interfaces or real-time data processing.

This microcontroller integrates an extensive range of enhanced I/Os and peripherals. Its connectivity capabilities include three I2C interfaces, four USARTs, six SPIs, two CAN interfaces, and SAI audio interfaces. It also provides a USB OTG Full-Speed and High-Speed with PHY, Ethernet, and an LCD-TFT controller, making it an ideal choice for industrial automation, medical equipment, consumer electronics, and IoT applications.

For development and debugging purposes, the STM32F746VGT6 supports JTAG/SWD interfaces, with a range of real-time hardware debugging features. The microcontroller also incorporates advanced security features, including a true random number generator and hardware cryptographic acceleration, ensuring secure data communication and protection against unauthorized access.

STMicroelectronics provides comprehensive software support for the STM32F746VGT6 through the STM32Cube ecosystem, including a Hardware Abstraction Layer (HAL), middleware components, and example projects to streamline development. With its exceptional performance, rich connectivity, and robust security features, the STM32F746VGT6 is an excellent choice for demanding applications that require a high-quality, reliable, and versatile microcontroller solution.
