Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr STMicroelectronics
Series STM32F1
Package Tape & Reel (TR)
Core Processor ARM® Cortex®-M3
Core Size 32-Bit Single-Core
Speed 24MHz
Connectivity I2C, IrDA, LINbus, SPI, UART/USART
Peripherals DMA, PDR, POR, PVD, PWM, Temp Sensor, WDT
Number of I/O 51
Program Memory Size 16KB (16K x 8)
Program Memory Type FLASH
RAM Size 4K x 8
Supply Voltage - Operating 2V ~ 3.6V
Data Converters A/D 16x12b; D/A 2x12b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 64-LQFP
Supplier Device Package 64-LQFP (10x10)
Base Product Number STM32F100
Standard Package 1,000
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001
Win Source Part Number 1263057-STM32F100R4T6BTR
Ultra Librarian 3D Model Ultra Librarian STM32F100R4T6BTR CAD Model

Description

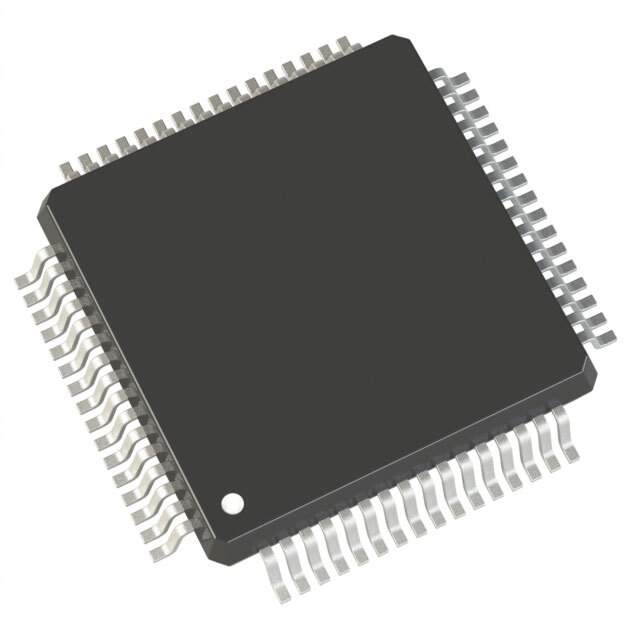

STM32F100R4T6BTR Microcontroller - STMicroelectronics

The STM32F100R4T6BTR from STMicroelectronics is a high-performance ARM Cortex-M3 based microcontroller, designed to offer an optimal balance between power consumption, performance, and features. This microcontroller is part of the STM32F100 Value Line series, which provides a cost-effective solution for a wide range of applications.

Key Features

  • Core: ARM Cortex-M3 processor, running at a frequency of up to 24 MHz, delivering 1.25 DMIPS/MHz (Dhrystone 2.1) performance.
  • Memory: Comes with 16KB of Flash memory and 4KB of SRAM, suitable for various embedded applications.
  • I/Os: Provides up to 37 I/O ports with interrupt capability, which allows for easy connection to peripherals and other microcontrollers.
  • Analog: Features an array of analog components, including up to 2 ADCs with 10-bit resolution, and up to 16 channels, enabling precise analog signal acquisition and processing.
  • Timers: Equipped with multiple timers, including general-purpose and advanced-control timers for complex timing operations and PWM generation.
  • Communication Interfaces: Offers a rich set of communication interfaces such as USART, SPI, and I2C, facilitating serial communication with peripheral devices.
  • Debugging: Integrated debug mode through Serial Wire Debug (SWD) and JTAG interfaces, simplifying development and troubleshooting.
  • Supply Voltage: Operates within a wide range of supply voltages from 2.0 to 3.6 V, compatible with various power sources and battery-operated applications.
  • Package: Available in a LQFP64 package, providing a compact footprint for space-constrained applications.

Applications

The STM32F100R4T6BTR microcontroller is versatile and can be used in a variety of applications, including industrial control systems, consumer electronics, home automation, alarm systems, and battery-operated devices. Its combination of power efficiency and processing capability makes it suitable for applications that require a balance between cost and performance.

With its robust feature set and STMicroelectronics' commitment to reliability and support, the STM32F100R4T6BTR is an excellent choice for designers looking to create sophisticated yet cost-effective embedded systems.
