The STL6N3LLH6 is a high-performance Power MOSFET produced by STMicroelectronics, a leader in semiconductor solutions. This device is part of STMicroelectronics' STripFET™ VI DeepGATE™ technology, which ensures optimized performance in terms of on-resistance and switching behavior. The STL6N3LLH6 is designed to meet the stringent requirements of a wide range of electronic applications, particularly in power management and conversion systems.

Key Features

• Low Threshold Drive: The device operates at a low gate drive, making it suitable for a variety of applications, including those that require efficient battery management.
• High Switching Performance: With its advanced technology, STL6N3LLH6 offers high-speed switching, which contributes to the efficiency of the overall system.
• Low On-Resistance (R<sub>DS(on)): The MOSFET has a very low on-state resistance, which minimizes conduction losses and improves power efficiency.
• 100% Avalanche Tested: Each unit is rigorously tested for avalanche ruggedness, which ensures reliability and longevity even under stressful conditions.
• Application Versatility: It is suitable for a variety of applications, including DC-DC converters, motor control circuits, and load switches.

Applications

The STL6N3LLH6 is versatile and can be used in various high-efficiency applications. It is particularly well-suited for:

• Switching regulators
• Power management in portable devices
• DC/AC inverters for solar energy systems
• Motor drives and controls
• LED lighting solutions

Product Specifications

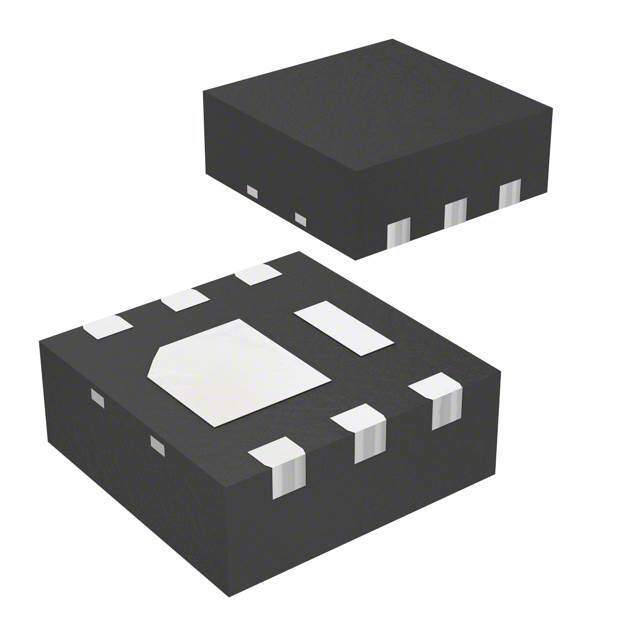

The STL6N3LLH6 MOSFET comes in a compact and robust package, offering excellent thermal performance and a high level of integration. Key specifications include:

• V<sub>DS: 30V - Maximum Drain-Source Voltage
• I<sub>D: 6A - Continuous Drain Current at 25°C
• R<sub>DS(on): 0.0195 Ω - Typical On-Resistance
• Q<sub>g: 8.5 nC - Total Gate Charge

For detailed information about the STL6N3LLH6, including datasheets, technical documentation, and support resources, customers are encouraged to visit the official STMicroelectronics website or contact their local sales office.
