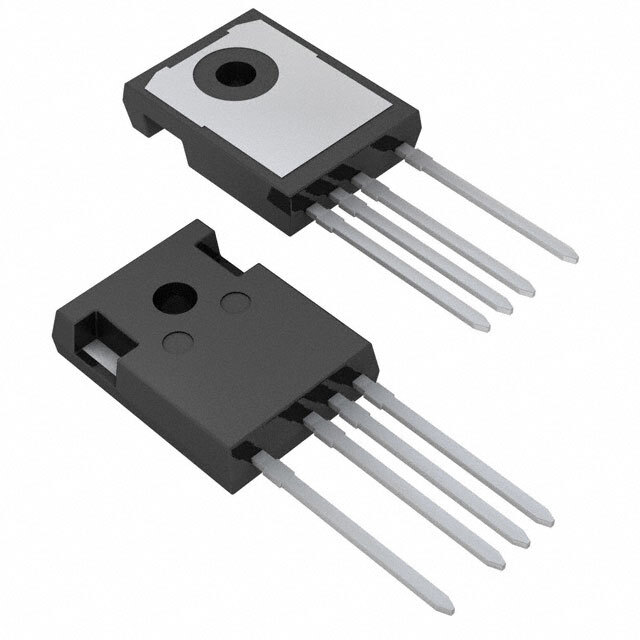

The STGW100H65FB2-4 is a cutting-edge power transistor developed by STMicroelectronics, a global semiconductor leader. This device is part of the STPOWER family, specifically designed for high-efficiency applications that require a robust and reliable power transistor capable of handling high voltages and currents.

Key Features

• High Voltage Capability: The STGW100H65FB2-4 can withstand voltages up to 650V, making it suitable for a wide range of power applications.
• High Current Rating: With a continuous current rating of 100A, this power transistor can handle significant power loads, ensuring reliable operation in demanding situations.
• Low On-Resistance: The device features a very low on-state resistance (R<sub>DS(on)), which enhances its efficiency by minimizing conduction losses.
• Fast Switching Speed: It is designed for fast switching, reducing switching losses and improving overall performance in applications such as switch-mode power supplies and motor drives.
• Robustness: The STGW100H65FB2-4 is built to withstand harsh conditions and provides excellent ruggedness, which is crucial for industrial and automotive applications.

Applications

The versatility of the STGW100H65FB2-4 allows it to be used in a variety of applications, including:

• Switch-mode power supplies (SMPS)
• Uninterruptible power supplies (UPS)
• Motor drives
• Power factor correction (PFC) circuits
• LED lighting
• Welding equipment

Advanced Technology

Utilizing STMicroelectronics' advanced MDmesh™ technology, the STGW100H65FB2-4 achieves outstanding performance by combining a vertical structure with a patented strip layout. This design ensures low gate charge and reduced capacitance, which translates to superior dynamic performance even at high frequencies.

Environmental and Quality Certifications

STMicroelectronics is committed to environmental sustainability and quality. The STGW100H65FB2-4 is compliant with various environmental standards, including RoHS and REACH, and is manufactured in facilities with ISO 9001 and ISO/TS 16949 certifications, ensuring high standards of quality and reliability.

With its robust design, high efficiency, and versatility, the STGW100H65FB2-4 is an excellent choice for designers looking to improve system performance while reducing energy consumption and enhancing reliability.
