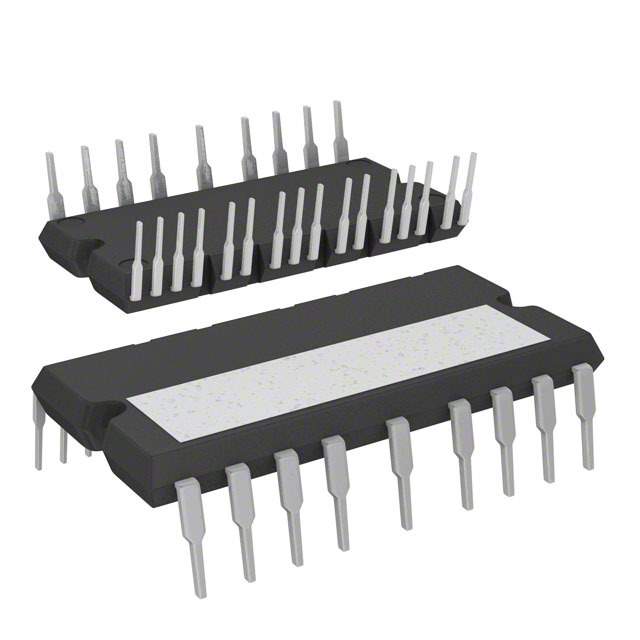

STGIPS20C60-H - STMicroelectronics IGBT Module

The STGIPS20C60-H is a state-of-the-art Integrated Power Module (IPM) from STMicroelectronics, designed to offer a compact, high-performance solution for driving three-phase motor applications. This module is part of the SLLIMM™ (Small Low-Loss Intelligent Molded Module) - second series, which is renowned for its efficiency and reliability.

Key Features

• Current Rating: The module is capable of delivering up to 20A of continuous collector current (I<sub>C), making it suitable for a wide range of power applications.
• Voltage Rating: With a maximum collector-emitter voltage (V<sub>CE) of 600V, it is designed to handle high voltage applications efficiently.
• Integrated Design: The STGIPS20C60-H integrates a three-phase inverter consisting of six IGBTs, three high voltage ICs for gate driving, and associated bootstrap diodes into a single package. This integration facilitates design simplicity and space-saving on the PCB.
• Advanced Protection: The module includes features such as under-voltage lockout, smart shutdown, and temperature sensing, ensuring the protection of the IGBTs and the overall system.
• Optimized Switching Performance: The IGBTs in the module are optimized for low conduction and switching losses, which translates to improved overall efficiency in motor control applications.
• Isolation: Electrical isolation between the power and control circuitry is provided by the module, enhancing safety and reliability.

Applications

The STGIPS20C60-H is ideal for a range of applications, particularly where efficient and reliable motor control is critical. These include:

• Home appliances (e.g., washing machines, refrigerators, air conditioners)
• Industrial drives
• Fans and pumps
• General purpose three-phase inverters

Quality and Reliability

STMicroelectronics is committed to delivering high-quality products. The STGIPS20C60-H is built to meet stringent quality standards, ensuring reliable performance in various operating conditions. With its robust design and protective features, this IPM is a dependable choice for designers looking to optimize their motor control systems.
