STGIPS10K60T-H - An Intelligent Power Module from STMicroelectronics

The STGIPS10K60T-H is a state-of-the-art Intelligent Power Module (IPM) designed and manufactured by STMicroelectronics, a global semiconductor leader known for its advanced and innovative electronics solutions. This IPM is part of the SLLIMM™ (Small Low-Loss Intelligent Molded Module) family, which is well-suited for advanced motor drive applications, such as those found in washing machines, air conditioners, and industrial automation systems.

With a maximum rating of 600V and 10A, the STGIPS10K60T-H is a three-phase inverter that integrates power MOSFETs and gate drivers into a single compact package. This integration not only simplifies the design and reduces the footprint of the motor drive circuitry, but also enhances the system's overall reliability and performance.

The module features a robust and efficient IGBT/MOSFET technology that ensures low conduction and switching losses, which is crucial for high-efficiency power conversion. The built-in gate drivers are optimized for the module's power semiconductors, providing excellent electrical isolation and protection against overcurrent, overtemperature, and under-voltage conditions. This ensures safe and reliable operation under a wide range of application conditions.

In addition to its protective features, the STGIPS10K60T-H comes with an integrated bootstrap diode for the high-side gate drive, further reducing the number of external components required. The module's layout is designed for optimal thermal management, featuring an exposed metal slug for efficient heat dissipation.

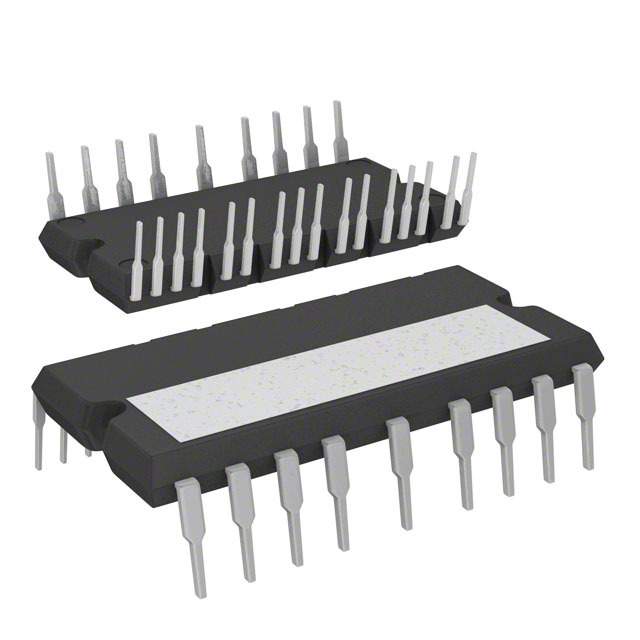

For ease of implementation, the STGIPS10K60T-H is housed in a 25-pin SDIP package, which is compatible with standard PCB layout practices. The module's interface is user-friendly, allowing for straightforward control with standard logic levels. This enables designers to quickly integrate the STGIPS10K60T-H into their systems, dramatically reducing the time-to-market for their products.

In summary, the STGIPS10K60T-H from STMicroelectronics is a highly integrated and efficient solution for driving three-phase motors. With its advanced features and protective functions, it represents an excellent choice for engineers looking to improve system performance while maintaining high reliability and simplifying design complexity.
