STGFW20H65FB - Field Stop Trench IGBT by STMicroelectronics

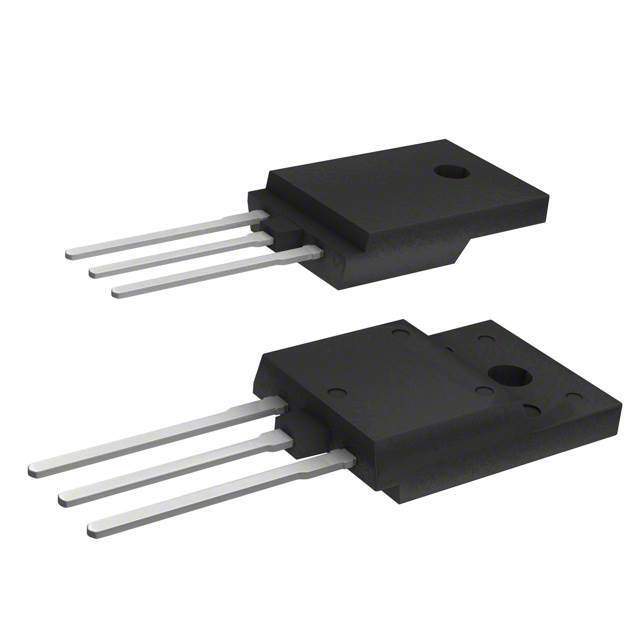

The STGFW20H65FB is a high-performance Field Stop Trench IGBT (Insulated Gate Bipolar Transistor) designed and manufactured by STMicroelectronics, a global semiconductor leader known for its innovative and reliable products. This IGBT is part of ST's PowerMESH™ lineup, which is renowned for delivering excellent power efficiency and robust performance in a wide range of power applications.
This IGBT operates at a maximum junction temperature of 175°C, providing a high level of reliability and longevity even under stressful thermal conditions. With a collector-emitter voltage (V<sub>CE) of 650V, the STGFW20H65FB can handle high voltage applications with ease, making it a versatile choice for power electronic designers.
One of the standout features of the STGFW20H65FB is its low on-state voltage drop (V<sub>CE(sat)), which translates to reduced conduction losses and improved overall efficiency of the system. The device also boasts a low gate charge (Q<sub>g), which minimizes switching losses and allows for faster switching frequencies. This characteristic is particularly beneficial in applications such as motor drives, uninterruptible power supplies (UPS), solar inverters, and welding equipment, where efficiency and fast switching are crucial.
Furthermore, the STGFW20H65FB is equipped with a co-packaged fast recovery diode, which provides excellent switching performance and further reduces the total losses in the system. This integration simplifies the design process and can help reduce the overall size of the power module, saving valuable space in compact designs.
STMicroelectronics has also focused on ensuring that the STGFW20H65FB meets stringent environmental standards. The device is RoHS compliant, meaning it does not contain hazardous substances commonly found in electronic components, such as lead, making it a more environmentally friendly choice for designers who are conscious about their products' ecological impact.
In summary, the STGFW20H65FB is a powerful and efficient IGBT that offers a combination of high voltage capability, low conduction and switching losses, and a high level of reliability. It is an excellent choice for designers looking to optimize the performance and efficiency of their power electronic systems.
