Product Overview: M24C64-WMN6TP

The M24C64-WMN6TP is a 64-Kbit serial EEPROM (Electrically Erasable Programmable Read-Only Memory) device from STMicroelectronics, designed for optimal data storage solutions in a wide array of electronic applications. This EEPROM is part of STMicroelectronics' M24C series, which is known for its reliability, data retention, and endurance.

Key Features

• Memory Size: The device offers a 64-Kbit storage capacity, allowing for the efficient storage of user data and device configurations.
• Interface: It uses a standard I²C (Inter-Integrated Circuit) serial interface, supporting up to 400 kHz (Fast-mode) and 1 MHz (Fast-mode Plus) communication speeds, making it easily integrable with most microcontrollers.
• Supply Voltage: M24C64-WMN6TP operates within a supply voltage range of 2.5 V to 5.5 V, accommodating various application requirements and ensuring compatibility with both low and standard voltage operations.

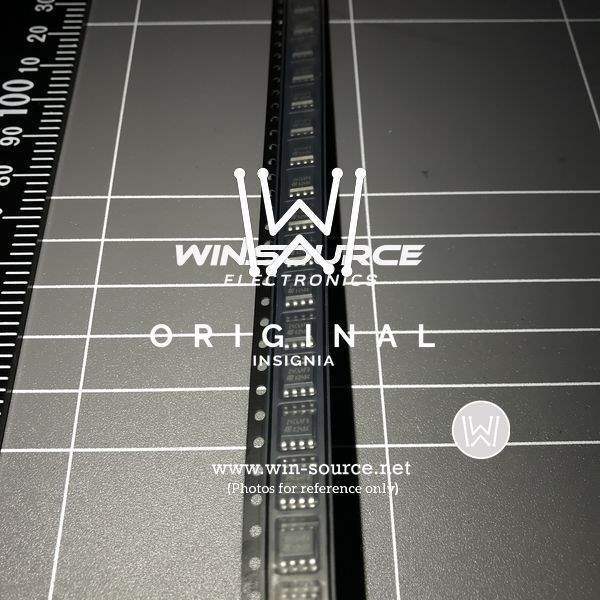

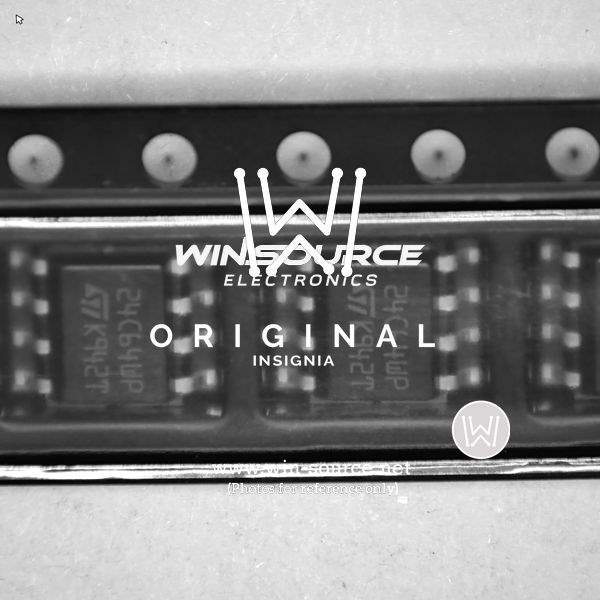

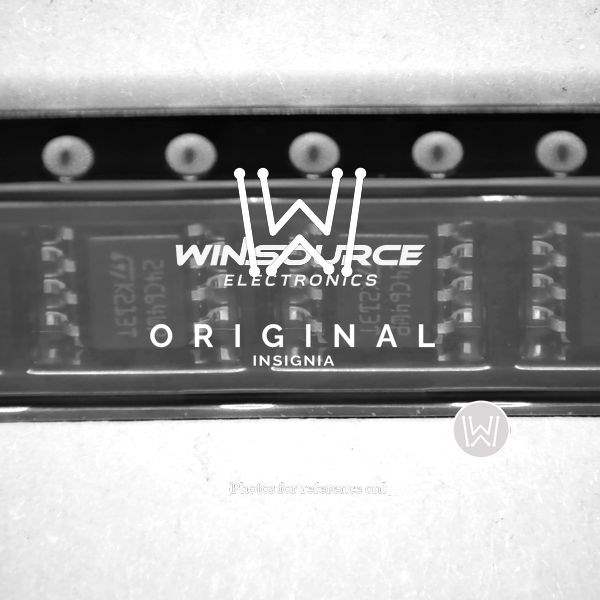

• Package: The EEPROM is housed in an 8-pin SOIC package, which is suitable for surface-mount technology (SMT) and takes up minimal board space.
• Write Cycle Time: It offers a byte and page write time of 5 ms, allowing for quick data updates and minimal system downtime during write operations.
• Data Retention: Users can expect a data retention period of over 40 years, ensuring the longevity of the stored information.
• Endurance: The device guarantees an endurance of 1 million write cycles, demonstrating its robustness and suitability for applications that require frequent data updates.

Applications

The M24C64-WMN6TP EEPROM is versatile and can be used in various applications, including:

• Industrial controls
• Medical devices
• Automotive systems
• Smart cards
• Consumer electronics

Conclusion

With its combination of high-density storage, fast data access, long-term data retention, and high endurance, the M24C64-WMN6TP from STMicroelectronics is an excellent choice for designers looking to incorporate reliable non-volatile memory into their systems. Its compatibility with standard I²C communication protocols and its small form factor make it an ideal EEPROM solution for a multitude of modern electronic applications.
