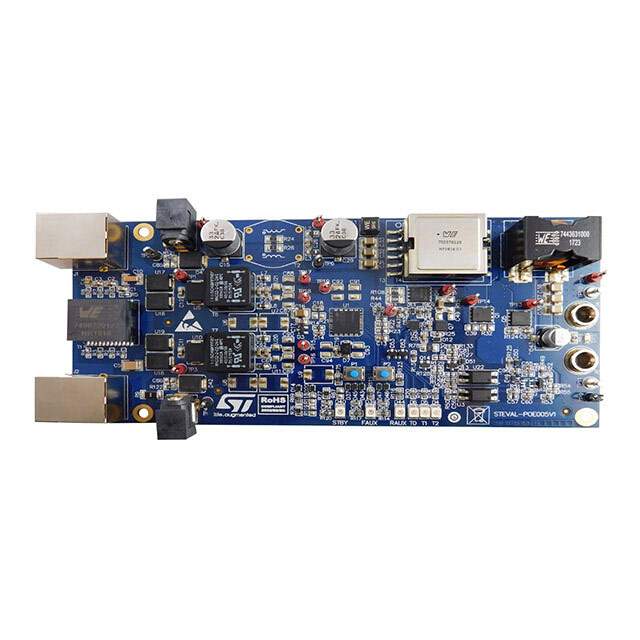

STEVAL-POE005V1 - Power over Ethernet PD Interface with Integrated DC/DC Converter

The STEVAL-POE005V1 from STMicroelectronics is a state-of-the-art Power over Ethernet (PoE) Powered Device (PD) interface module that integrates a DC/DC converter, providing a complete PoE solution. This module is designed to meet the IEEE 802.3af standard, which ensures compatibility with Power Sourcing Equipment (PSE) that also adheres to the standard specifications.

This innovative product is a compact and efficient solution for a wide range of applications that require both data and power to be delivered over a single Ethernet cable. The STEVAL-POE005V1 simplifies the implementation of PoE in devices such as IP cameras, VoIP phones, wireless access points, and remote sensors.

Key Features:

• Compliance with IEEE 802.3af PoE standard for interoperability with various PSEs.
• Integrated isolated DC/DC converter with programmable output voltage for versatility across different applications.
• Supports a wide input voltage range, suitable for various PD applications.
• Over-temperature, over-current, and short-circuit protection, ensuring reliable operation and longevity.
• Compact design, which allows for easy integration into existing systems without significant redesign.
• Diagnostic LEDs that provide visual feedback for system status and troubleshooting.

The module's integrated DC/DC converter is optimized for high efficiency, which minimizes power loss and heat generation. This feature is especially crucial for devices that are enclosed in tight spaces with limited ventilation. The STEVAL-POE005V1 also includes an array of protection features, which safeguards the module and the powered device against electrical anomalies.

With its plug-and-play design, the STEVAL-POE005V1 can be rapidly deployed in new or existing systems, significantly reducing development time and cost. Its robust design and compliance with the PoE standard make it an excellent choice for designers looking to incorporate PoE functionality with minimal hassle.

For more information, datasheets, and support resources, visit the STMicroelectronics website to ensure a smooth integration of the STEVAL-POE005V1 into your next project.
