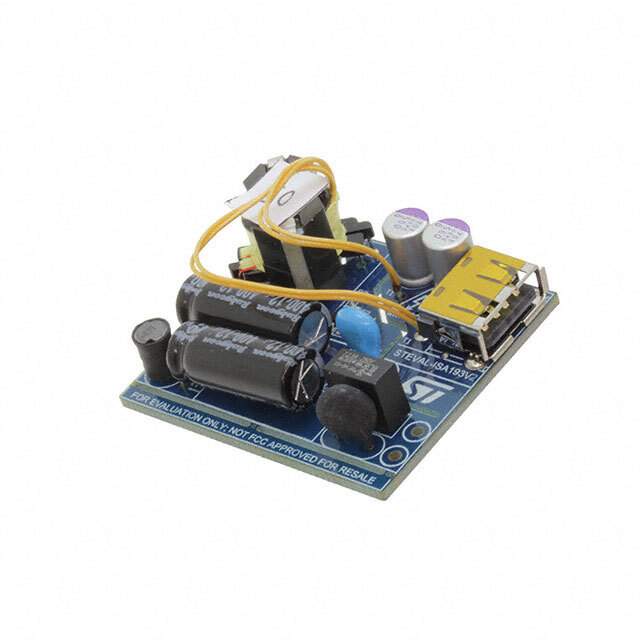

STEVAL-ISA193V2 Product Overview

The STEVAL-ISA193V2 is a highly efficient, compact, and versatile evaluation board designed by STMicroelectronics for its advanced power solutions. This evaluation board is specifically tailored for testing the performance of the L7987, a high-efficiency DC-DC converter capable of delivering up to 3A of current to the load.

Key Features

• High Efficiency: The L7987 converter on the STEVAL-ISA193V2 boasts a wide input voltage range from 4.5V to 61V, ensuring efficient operation over a variety of input conditions and applications.
• Adjustable Output: The output voltage can be adjusted from 0.8V to VIN, providing flexibility for different power requirements.
• Compact Design: The board's layout is optimized for size, demonstrating the converter's suitability for space-constrained applications.
• Thermal Management: Features include over-temperature protection and a thermal shutdown mechanism to safeguard the system under extreme conditions.
• Protection Features: The STEVAL-ISA193V2 is equipped with various protection features such as overcurrent, short-circuit, and overvoltage protection, ensuring reliable operation and longevity of the board and the components it powers.

Applications

The versatility of the STEVAL-ISA193V2 makes it ideal for a wide range of applications, including industrial power supplies, consumer electronics, telecommunications, and automotive systems where efficiency and compactness are critical.

Design and Development Support

STMicroelectronics provides comprehensive support for the STEVAL-ISA193V2, including detailed documentation, reference design files, and technical support to facilitate rapid development and integration into various systems.

Quality and Reliability

As with all STMicroelectronics products, the STEVAL-ISA193V2 is manufactured to the highest quality standards, ensuring reliable performance in a wide array of operating conditions and environments.
