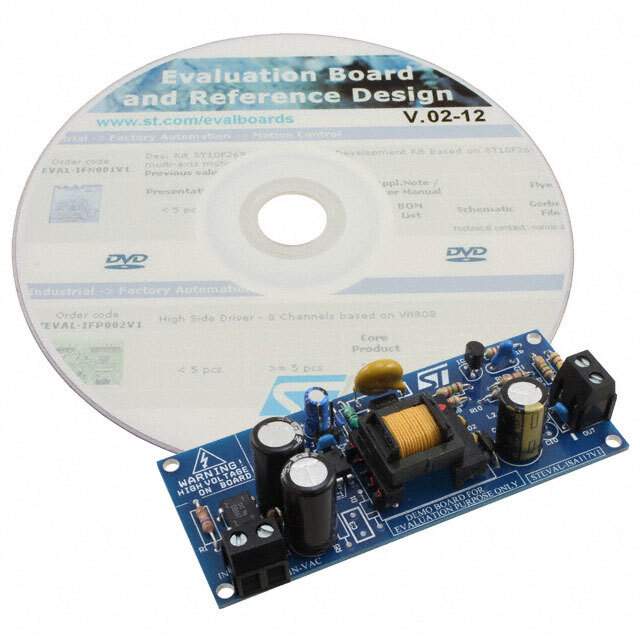

STEVAL-ISA117V1 - STMicroelectronics Voltage Regulator Evaluation Board

The STEVAL-ISA117V1 from STMicroelectronics is a highly efficient evaluation board designed for engineers and developers who require a robust voltage regulation solution. This compact board is specifically tailored to test and evaluate the performance of the L7987L, a step-down switching regulator capable of delivering up to 3 A of continuous current to the load.

Key Features

• Adjustable Output Voltage: The L7987L regulator allows for an adjustable output voltage that can be set from 0.8 V to VIN, catering to a wide range of applications and power requirements.
• Wide Input Voltage Range: With an input voltage range from 4.5 V to 61 V, the STEVAL-ISA117V1 is versatile and can accommodate various power sources, making it suitable for industrial, automotive, and consumer applications.
• High Efficiency: The L7987L switching regulator is designed for high efficiency, which is critical for reducing heat generation and improving system reliability.
• Compact Size: The evaluation board's small form factor makes it easy to integrate into existing systems or for use in space-constrained applications.
• Protection Features: The board includes a plethora of protection features such as overcurrent protection, thermal shutdown, and overvoltage protection, ensuring the longevity and reliability of both the regulator and the application it powers.

Applications

The STEVAL-ISA117V1 is suitable for a broad range of applications, including but not limited to:

• Industrial power supplies
• Automotive applications
• Consumer electronics
• Telecommunication devices
• IoT and smart home devices

Design Support

STMicroelectronics provides comprehensive design support for the STEVAL-ISA117V1, including detailed technical documentation, reference design files, and direct support from their engineering team to assist with integration and troubleshooting.

Whether you are developing a new product or improving an existing one, the STEVAL-ISA117V1 evaluation board is an invaluable tool for testing and validating your power supply design with the L7987L voltage regulator.
