STEVAL-ISA043V2 - STMicroelectronics Product Overview

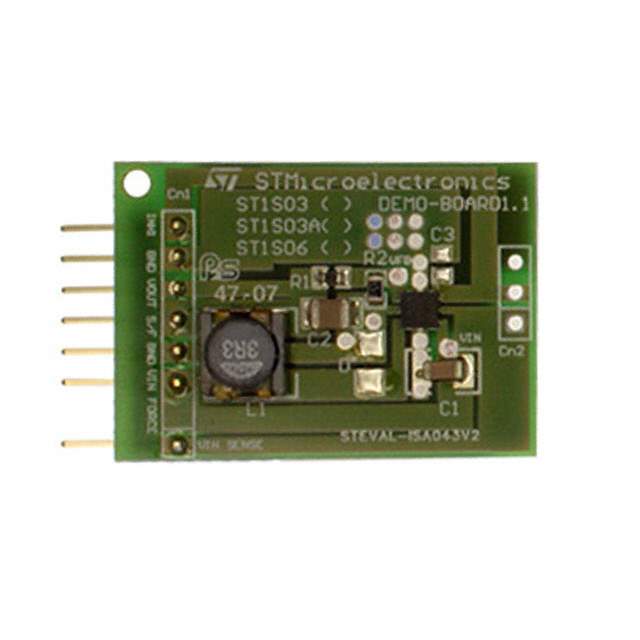

The STEVAL-ISA043V2 is a highly efficient and versatile evaluation board from STMicroelectronics, designed for those seeking to test and prototype with the VIPerPlus family of high-voltage converters. This evaluation board is specifically tailored for the VIPer22A-E high-voltage converter, which integrates a PWM controller and a 730V rugged power MOSFET. It is an exemplary tool for designers to explore the features and performance of the VIPerPlus series in offline power supplies.

The STEVAL-ISA043V2 comes with a European plug and is configured to deliver an output power of up to 5 watts. It operates across a wide input voltage range from 185V to 264V AC, making it suitable for a variety of applications that require a reliable and compact power solution. The board is designed to produce a 12V output voltage, which is a common requirement for many electronic devices and systems.

One of the key features of the VIPerPlus family, and by extension the STEVAL-ISA043V2, is the energy-saving capabilities. The board includes features such as pulse skipping modulation, which helps to minimize power consumption at light loads, and a built-in high-voltage startup circuit, which enables a very fast startup time while keeping the standby power consumption low.

The board also incorporates several protection features, including overvoltage protection (OVP), overload protection (OLP), and thermal shutdown (TSD), ensuring the safety and reliability of both the power supply and the end application. These features help prevent damage from electrical anomalies and contribute to the longevity of the device.

For engineers and designers looking to develop applications such as auxiliary power supplies, home appliances, or power adapters, the STEVAL-ISA043V2 evaluation board is an indispensable tool. Its ease of use, combined with the comprehensive datasheet and support materials provided by STMicroelectronics, ensures a smooth development process from concept to final product.
