Same model may have multiple batches, images only for reference.

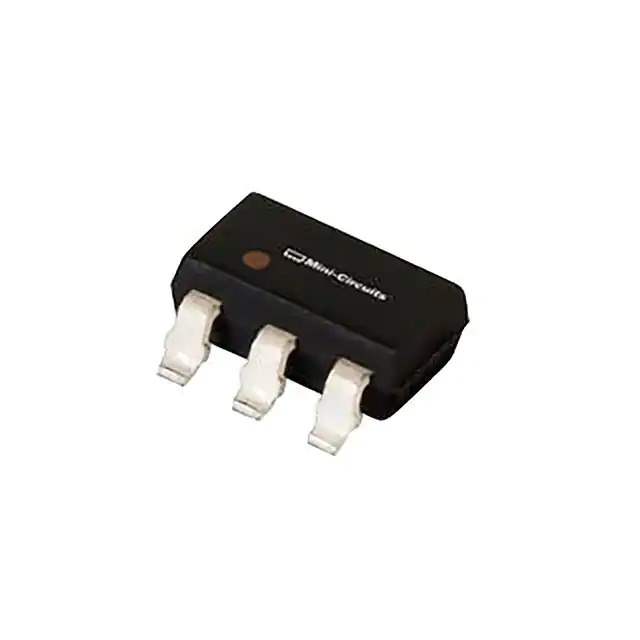

SP-2L+ Real Image
Same model may have multiple batches, images only for reference.

SP-2L+

Part No SP-2L+
Manufacturer Mini-Circuits
Catalog RF Power Dividers/Splitters
Description RF PWR DVDR 2.7GHZ-4GHZ SOT23-6
Datasheet
SP-2L+ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Power Dividers/Splitters
Mfr Mini-Circuits
Package Tape & Reel
Product Status Obsolete
Insertion Loss 0.75dB
Frequency 2.7 GHz ~ 4 GHz
Specifications Isolation (Min) 10dB, 1.5 VSWR (Max), 8° Imbalance (Max)
Size / Dimension 0.114" L x 0.059" W x 0.064" H (2.90mm x 1.51mm x 1.63mm)
Package / Case SOT-23-6
Standard Package 500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 336821-SP-2L+
Ultra Librarian 3D Model Ultra Librarian SP-2L+ CAD Model

Description

The 336821-SP-2L+ is an RF and Wireless RF Power Divider/Splitter designed for use in various electronic applications.

  • Package: SOT-23-6
  • Frequency Range: 2.7 GHz to 4 GHz
  • Insertion Loss: 0.75dB
  • Standard Package: 500 pcs
  • Size: 0.114" L x 0.059" W x 0.064" H
  • Status: obsolete
