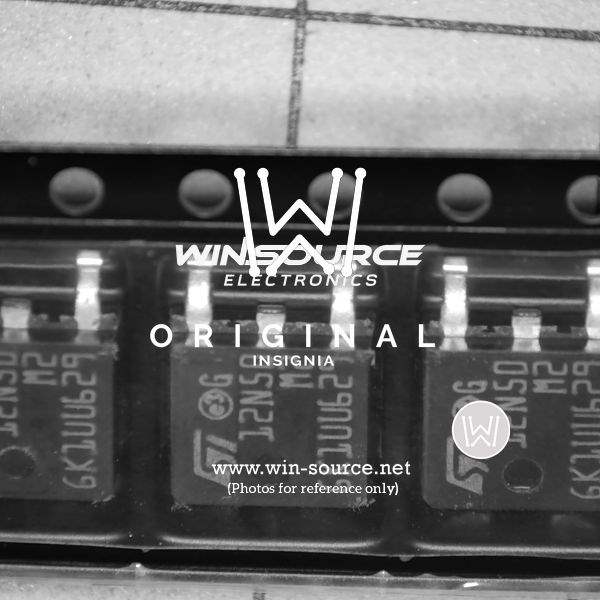

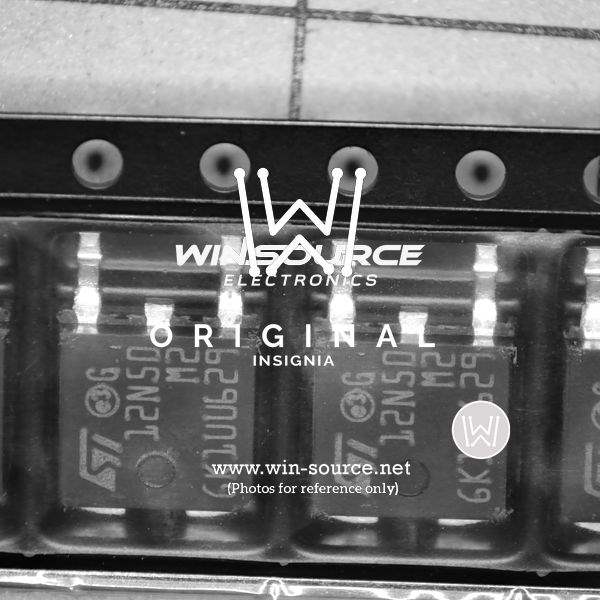

Product Overview: STD12N50M2 - STMicroelectronics

The STD12N50M2 is a high-performance N-channel MOSFET developed by STMicroelectronics, a leader in semiconductor solutions. This power MOSFET is designed to deliver efficiency and reliability for a wide range of applications, including switching regulators, power management, and motor control.

Key Features

• High Voltage Capability: The STD12N50M2 is rated for a maximum drain-source voltage (V<sub>DS) of 500V, making it suitable for high voltage applications.
• Low On-Resistance: With an on-resistance (R<sub>DS(on)) of only 0.52Ω, this MOSFET ensures minimal power loss and improved efficiency during operation.
• High Current Handling: The device can handle continuous drain currents (I<sub>D) up to 11A, providing robust performance for demanding power applications.
• Reduced Gate Charge: A low gate charge (Q<sub>g) enhances the switching performance, contributing to energy savings in high-frequency power switching applications.
• 100% Avalanche Tested: Guaranteeing ruggedness, the STD12N50M2 has been tested for avalanche energy withstanding capability, ensuring reliability under stress conditions.

Applications

The versatility of the STD12N50M2 allows it to be employed in various applications, such as:

• Switch Mode Power Supplies (SMPS)
• LED Lighting Systems
• DC-DC Converters
• High Efficiency Power Management Circuits
• Motor Drives and Inverters

Environmental and Quality Certifications

The STD12N50M2 complies with several environmental standards, ensuring that it meets the requirements for eco-design and reduces the environmental impact. The device is RoHS compliant and is designed to meet the demands of energy-efficient systems.

Conclusion

With its robust design, high voltage and current capabilities, and low on-resistance, the STD12N50M2 from STMicroelectronics stands out as a superior choice for designers looking to optimize their power systems for efficiency and reliability. Its compliance with environmental standards further underscores STMicroelectronics' commitment to sustainability and energy-conscious innovation.
