Products specifications

Category RF/IF and RFID>RF Transceiver ICs
Mfr STMicroelectronics
Package Tape & Reel
Type TxRx + MCU
RF Family/Standard 802.15.4, General ISM < 1GHz
Protocol SIGFOX™, Wireless M-Bus
Modulation 2FSK, 4FSK, 2GFSK, 4GFSK, ASK, OOK
Frequency 413MHz ~ 479MHz, 826MHz ~ 958MHz
Data Rate (Max) 500kbps
Power - Output 16dBm
Serial Interfaces SPI, UART
GPIO 4
Voltage - Supply 1.8V ~ 3.6V
Current - Transmitting 11.5mA ~ 32mA
Temperature Range - Operating -40°C ~ 105°C (TA)
Mounting SMD (SMT)
Package / Case 24-VFQFN Exposed Pad
Supplier Device Package 24-QFN (4x4)
Base Product Number S2-L
Other Names 497-S2-LPTXQCT,497-S2-LPTXQTR,497-S2-LPTXQDKR
Standard Package 4,000
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1235745-S2-LPTXQTR
Ultra Librarian 3D Model Ultra Librarian S2-LPTXQTR CAD Model

Description

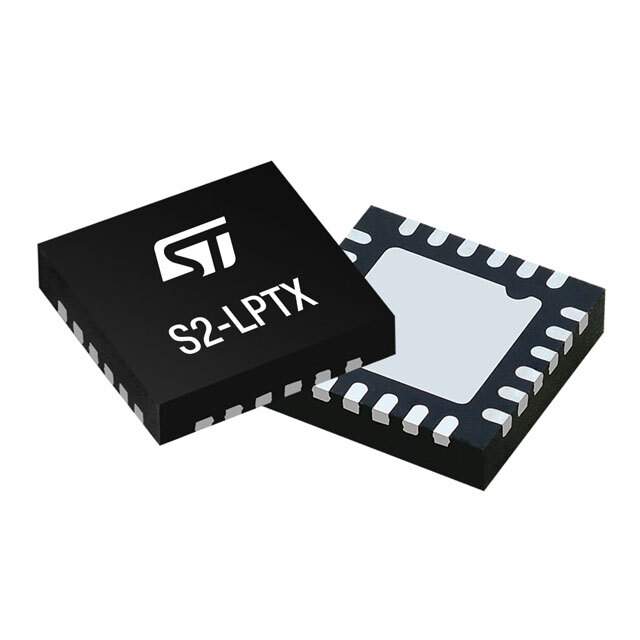

STMicroelectronics S2-LPTXQTR Ultra-Low Power RF Transmitter

The S2-LPTXQTR from STMicroelectronics is a high-performance, ultra-low power RF transmitter designed for a wide range of applications in the Industrial, Scientific, and Medical (ISM) bands. This device is an ideal choice for systems that require efficient power management and reliable wireless communication, such as wireless sensor networks, home automation, smart metering, and IoT devices.

Key Features

  • Frequency Bands: The S2-LPTXQTR operates in the sub-1 GHz spectrum, supporting the 433, 868, and 920 MHz frequency bands, which are widely used for long-range communication in various regions around the world.
  • Ultra-Low Power Consumption: Designed with power efficiency in mind, this transmitter is capable of achieving extremely low power consumption, making it suitable for battery-operated devices where power availability is critical.
  • Modulation Schemes: It supports multiple modulation schemes including 2-FSK, 4-FSK, OOK, and ASK, providing flexibility to adapt to different communication protocols and requirements.
  • Output Power: The S2-LPTXQTR offers programmable output power up to +16 dBm, ensuring robust signal strength for reliable data transmission over long distances.
  • Configurable Packet Handling: The transmitter comes with an integrated packet handler, which includes features like address checking, CRC computation, and FEC, to ensure data integrity and efficient communication.

Applications

The versatility of the S2-LPTXQTR makes it suitable for a variety of applications, including:

  • Smart metering
  • Home and building automation
  • Wireless sensor networks
  • Industrial control and monitoring
  • IoT devices

Design Support

STMicroelectronics provides comprehensive design support for the S2-LPTXQTR, including development tools, reference designs, and technical documentation to assist engineers in integrating this transmitter into their projects effectively and efficiently.
