Products specifications Report Issue?

Win Source Part Number WS1197386-NUCLEO-L053R8
Manufacturer STMicroelectronics
Category Development Boards, Kits, Programmers -Evaluation Boards - Embedded - MCU, DSP
Series STM32L0
Package Box
Product Status Active
Core Processor ARM® Cortex®-M0+
Type MCU 32-Bit
Utilized IC / Part STM32L053
Mounting Type Fixed
Contents Board(s)
Board Type Evaluation Platform
Ultra Librarian 3D Model Ultra Librarian NUCLEO-L053R8 CAD Model

Description

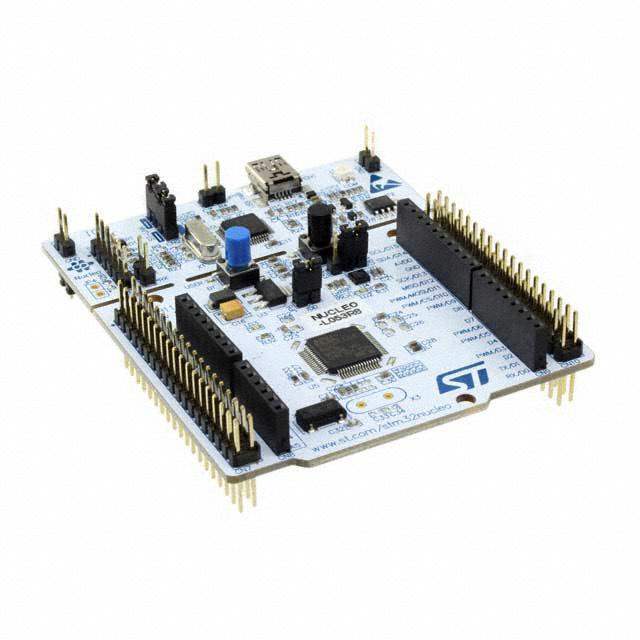

Product Overview: NUCLEO-L053R8 by STMicroelectronics

The NUCLEO-L053R8 is a highly versatile development board from STMicroelectronics that allows users to unleash the full potential of the STM32 L0 series microcontrollers. Designed to cater to a wide range of applications, from simple hobbyist projects to complex industrial systems, this board is an ideal platform for both prototyping and production.

Key Features

  • STM32 Microcontroller: At the heart of the NUCLEO-L053R8 is the STM32L053R8T6 microcontroller, featuring an ARM Cortex-M0+ core, 64 KB of Flash memory, and 8 KB of RAM, making it suitable for a variety of low-power applications.
  • Development Flexibility: The board includes an ST-LINK/V2-1 debugger/programmer with SWD connector, eliminating the need for separate probe hardware. Users can also take advantage of comprehensive free software libraries and examples available within the STM32Cube MCU Package.
  • Expansion Compatibility: The NUCLEO-L053R8 is equipped with Arduino Uno V3 connectivity as well as ST morpho headers, which provide easy access to all of the microcontroller's peripherals and enable the quick connection of additional shields or boards for extended functionality.
  • Power Options: The board can be powered via USB, or an external source, and features various power management options for energy-efficient operation.

Target Applications

With its low-power consumption and rich set of peripherals, the NUCLEO-L053R8 is well-suited for a broad range of applications, including but not limited to:

  • Internet of Things (IoT) devices
  • Energy management systems
  • Wearable electronics
  • Home automation
  • Industrial control systems

Support and Resources

STMicroelectronics provides extensive support for the NUCLEO-L053R8 through their online resources. Developers can access a wide range of tools, including the STM32CubeMX MCU configuration and initial code generation software, as well as the integrated development environments (IDEs) that support the STM32 portfolio.

The NUCLEO-L053R8 is not just a development board; it's a gateway to innovation, enabling designers to explore the capabilities of STM32 microcontrollers and turn their ideas into reality.
