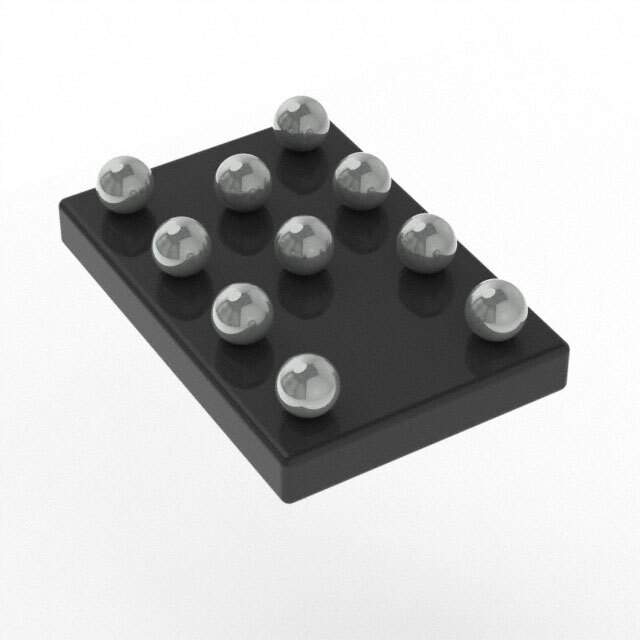

HDMI2C2-5F2

Part No HDMI2C2-5F2
Manufacturer STMicroelectronics
Catalog TVS - Mixed Technology
Description ESD PROTECTION AND SIGNAL BOOSTE /
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Mixed Technology
Mfr STMicroelectronics
Package Tape & Reel
Technology Mixed Technology
Number of Circuits 5
Applications HDMI
Mounting SMD (SMT)
Package / Case 10-WFBGA, WLCSP
Supplier Device Package 10-WLCSP (1.98x1.36)
Base Product Number HDMI2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 497-18241-1,497-18241-2,497-18241-6
Standard Package 5,000
Win Source Part Number 1123984-HDMI2C2-5F2
Ultra Librarian 3D Model Ultra Librarian HDMI2C2-5F2 CAD Model

Description

The HDMI2C2-5F2 from STMicroelectronics is a state-of-the-art ESD (Electrostatic Discharge) protection device specially designed for HDMI interface protection. This robust component is essential for safeguarding sensitive HDMI signal lines from static electricity and transient voltage spikes, which can be detrimental to the performance and longevity of electronic equipment.

Key Features

  • High ESD Protection: The HDMI2C2-5F2 offers excellent ESD protection exceeding IEC 61000-4-2 level 4, withstanding ESD strikes of up to 15 kV (air discharge) and 8 kV (contact discharge).
  • Low Capacitance: With a low line capacitance design, this device ensures high signal integrity, making it ideal for high-speed data lines without compromising signal quality.
  • HDMI Compliance: The device is fully compliant with HDMI 1.4 specifications, ensuring compatibility with the latest HDMI standards for audio and video transmission.
  • Low Leakage Current: The HDMI2C2-5F2 has a very low leakage current, which is critical for maintaining power efficiency and minimizing interference with the normal operation of the HDMI interface.
  • High Integration: It integrates two channels of ESD protection, reducing the number of components required on a PCB and simplifying the design process.

Applications

The HDMI2C2-5F2 is ideal for a wide range of applications that require reliable HDMI connectivity. These include:

  • Digital TVs and set-top boxes
  • High-definition multimedia interfaces
  • Personal computers and laptops
  • Video game consoles
  • DVD and Blu-ray players
  • Professional video equipment

Quality and Reliability

STMicroelectronics is renowned for its commitment to quality and reliability, and the HDMI2C2-5F2 is no exception. It is manufactured using a robust process that ensures high durability and performance consistency, providing peace of mind for manufacturers and end-users alike.

For those seeking to enhance the resilience of their HDMI interfaces against electrostatic disturbances, the HDMI2C2-5F2 presents an optimal solution, blending protection, performance, and STMicroelectronics' trusted expertise in semiconductor design.
