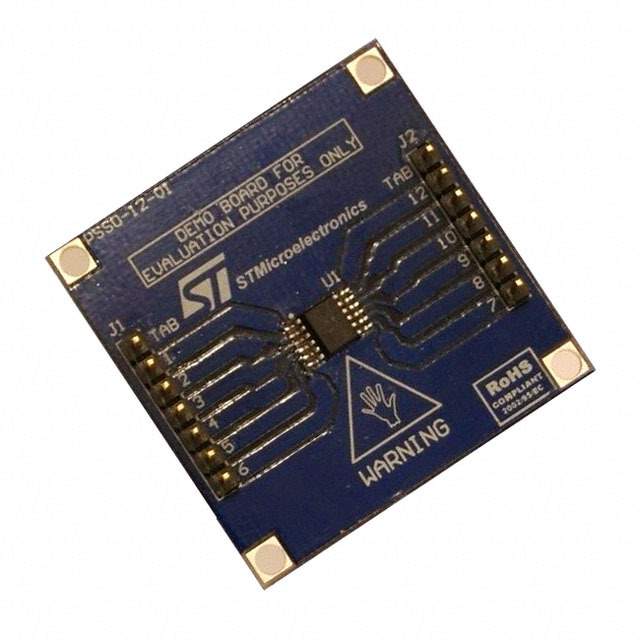

The EV-VND5E160AJ from STMicroelectronics is a state-of-the-art evaluation board designed for automotive and industrial applications. This board is specifically created to test the capabilities and performance of the VND5E160AJ Double Channel High Side Driver, which is an integral part of the modern power management and control systems in vehicles and heavy machinery.

Key Features

• High Side Driver Integration: The VND5E160AJ is a sophisticated high side driver that is capable of driving high current loads with excellent power efficiency and thermal performance.
• Advanced Diagnostics: The board includes built-in diagnostic features that provide critical information on the status of the high side driver, including load current monitoring and fault reporting for overtemperature, overvoltage, and open-load conditions.
• Robust Protection: The evaluation board is equipped with protection features such as undervoltage shutdown, overvoltage clamp, and loss of ground and power supply protections, ensuring reliability and safety in harsh environments.
• Flexible Power Supply: The EV-VND5E160AJ can operate across a wide range of supply voltages, making it suitable for a variety of automotive and industrial power systems.
• User-Friendly Interface: The board comes with a user-friendly interface that allows for easy connection to microcontrollers and other control units, enabling quick setup and integration into existing systems.

Applications

The EV-VND5E160AJ evaluation board is ideal for a range of applications including, but not limited to:

• Automotive lighting systems
• Automotive body electronics
• Industrial automation systems
• Smart power distribution systems

With its combination of advanced features and protections, the EV-VND5E160AJ evaluation board from STMicroelectronics is an invaluable tool for developers and engineers looking to optimize the performance and reliability of their high side driver applications.
