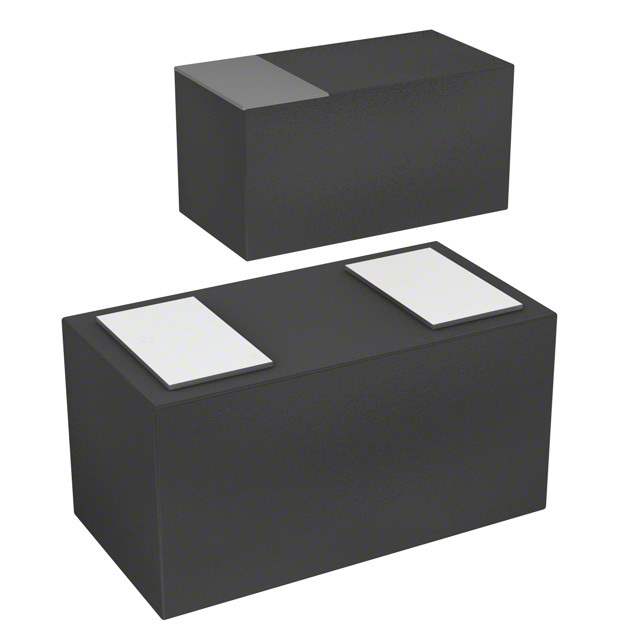

ESDAXLC6-1BU2K - STMicroelectronics

The ESDAXLC6-1BU2K from STMicroelectronics is a state-of-the-art Transil™ diode, specifically designed to provide exceptional protection against electrostatic discharges (ESD) for sensitive electronic components. This diode is part of the ESDA series and is a single-line TVS (Transient Voltage Suppressor) that is ideal for safeguarding high-speed data lines and other vulnerable circuits used in a variety of applications, including mobile phones, computers, and other portable devices.

With its ultra-compact 0201 package, the ESDAXLC6-1BU2K is one of the smallest TVS diodes available in the market, making it particularly suitable for applications where board space is at a premium. Despite its diminutive size, it offers a robust protection level, with the capability to withstand ESD surges up to 15kV (air discharge) and 8kV (contact discharge) as per the IEC 61000-4-2 standard.

The device features a low clamping voltage and low leakage current, ensuring minimal impact on the signal integrity of the protected line while maintaining a high level of protection. The low capacitance of the diode also makes it suitable for protecting high-frequency data lines without compromising data integrity.

The ESDAXLC6-1BU2K is designed for easy integration into a variety of circuit designs. It is RoHS compliant and meets the requirements of international standards, ensuring compatibility with global environmental and safety regulations. The device's bidirectional functionality allows it to provide symmetrical ESD protection, which simplifies the circuit design by reducing the number of components required.

In summary, the ESDAXLC6-1BU2K is a powerful, compact solution for protecting sensitive electronic equipment from the potentially damaging effects of ESD. Its combination of small size, high protection level, and low impact on signal integrity makes it an excellent choice for designers looking to enhance the durability and reliability of their products.
