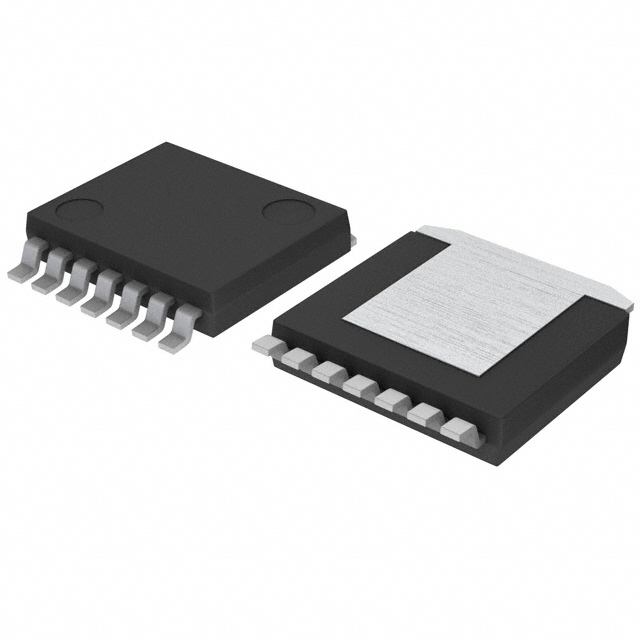

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Motor Type - Stepper Bipolar
Motor Type - AC, DC Brushed DC
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (4)
Interface Parallel
Technology DMOS
Step Resolution 1, 1/2, 1/4, 1/8, 1/16
Applications General Purpose
Current - Output 1.2A
Voltage - Supply 4.75V ~ 5.25V
Voltage - Load 12V ~ 34V
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting Type Surface Mount
Case / Package 36-PowerBSSOP (0.433", 11.00mm Width)
Supplier Device Package PowerSO-36, Bottom Pad
Package Tube
Supply and Demand Status Shortage
Win Source Part Number 1504512-E-L6258
Ultra Librarian 3D Model Ultra Librarian E-L6258 CAD Model
