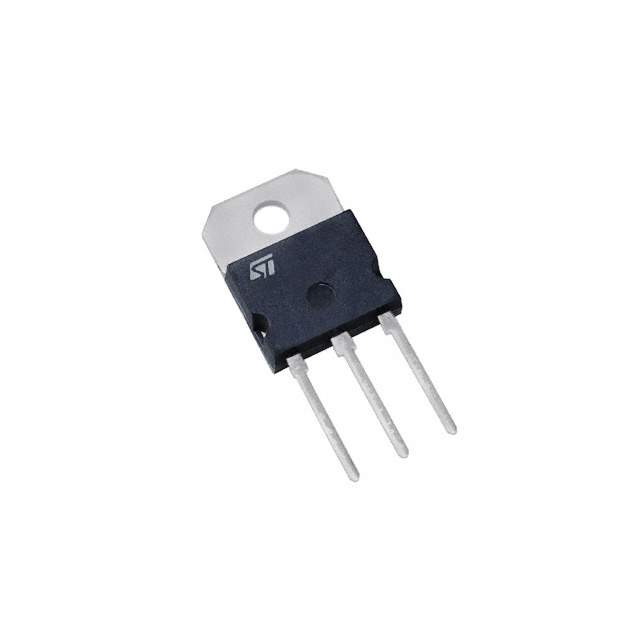

The BYW99P-200 is a high-performance fast recovery diode designed and manufactured by STMicroelectronics, a global semiconductor leader. This diode is specifically engineered to meet the needs of high-speed switching applications and is well-suited for use in power supplies, converters, and other power management systems.
Key Features
- Voltage Rating: The BYW99P-200 boasts a repetitive peak reverse voltage (V<sub>RRM) of 200 volts, making it capable of handling high voltage applications with ease.
- Current Capacity: With an average forward current (I<sub>F(AV)) of 30 amperes, this diode can support significant current loads, ensuring reliable performance in demanding situations.
- Fast Recovery Time: The device features a very fast recovery time, typically less than 50 nanoseconds, which minimizes power loss and improves the efficiency of the application in which it is used.
- High Surge Capability: Its surge current rating is robust, enabling the diode to withstand transient overcurrent conditions without failure.
- Low Forward Voltage Drop: The low forward voltage drop (V<sub>F) of the BYW99P-200 reduces power dissipation, contributing to the overall efficiency of the system.
- Thermal Resistance: It has a low thermal resistance, which ensures effective heat dissipation and contributes to the reliability and longevity of the device.
Applications
The BYW99P-200 is suitable for a wide range of applications, including:
- Switching power supplies
- Power converters
- Free-wheeling diodes in variable speed drives
- Snubber diodes
- Power factor correction circuits
Package and Quality
The diode is packaged in a robust and reliable package that ensures its durability under various environmental conditions. STMicroelectronics' commitment to quality means that the BYW99P-200 is produced to meet the highest industry standards, offering reliability and performance that customers can trust.
Conclusion
Overall, the BYW99P-200 from STMicroelectronics is a versatile and reliable component that provides efficient and fast switching capabilities for advanced electronic systems. Its combination of high voltage rating, fast recovery time, and low power loss makes it an excellent choice for engineers and designers looking to enhance the performance of their power management solutions.
