Products specifications Report Issue?

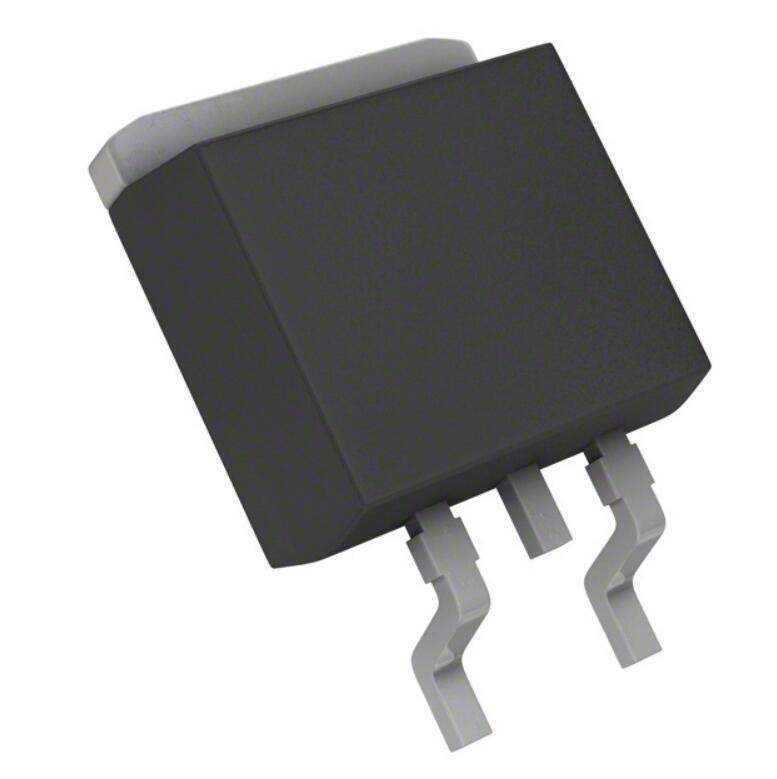

Win Source Part Number WS1196670-RB095BM-40TL
Win Source Part Number Cross
Manufacturer Rohm Semiconductor
Category Discrete Semiconductor Products Diodes Rectifiers Diode Arrays
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Not For New Designs
Diode Configuration 1 Pair Common Cathode
Technology Schottky
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 100 µA @ 40 V
Operating Temperature - Junction 150°C (Max)
Ultra Librarian 3D Model Ultra Librarian RB095BM-40TL CAD Model

Description

The Rohm Semiconductor Fast Recovery Schottky Diode Arrays are designed for high-speed switching applications in electronic devices.

  • Speed: < 500ns
  • Current Rating: > 200mA
  • Diode Configuration: 1 Pair Common Cathode
  • Operating Temperature: Up to 150°C
  • Packaging: Tape & Reel, Cut Tape, Digi-Reel
