STMicroelectronics BTW69-800 SCR

The BTW69-800 is a robust silicon-controlled rectifier (SCR) manufactured by STMicroelectronics, designed to deliver high performance in power control and switching applications. This SCR is well-suited for a variety of uses, including phase control operations in converters, inrush current limiting circuits, and as part of motor control configurations.

With a maximum repetitive peak off-state voltage (VDRM) of 800V, the BTW69-800 ensures a wide margin for voltage spikes and transients, making it reliable for applications in challenging electrical environments. It can handle a surge current of up to 800A, which is critical for applications that experience short-term overloads. This feature helps to prevent damage to the SCR and the circuit it is protecting, thereby increasing the longevity of the overall system.

The device boasts a high average on-state current (IT(AV)) of 50A, which makes it suitable for handling moderate to high power loads. Its on-state RMS current (IT(RMS)) of 80A ensures that the SCR can manage continuous current flow without overheating or failing. The BTW69-800 is also capable of withstanding a non-repetitive peak on-state current (ITSM) of up to 800A for a 10ms half sine wave pulse, providing ample protection against short-term current spikes.

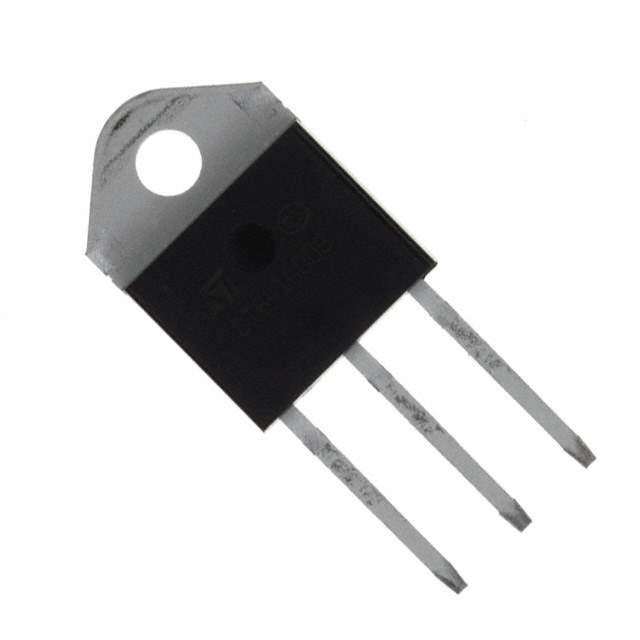

Designed in a rugged package, the BTW69-800 comes in a TO-3P isolated mounting tab which not only facilitates easy installation but also provides excellent thermal performance and electrical isolation. This feature is particularly important in applications where space is at a premium and where thermal management is critical.

STMicroelectronics has designed the BTW69-800 with industrial-grade standards, ensuring that it meets the stringent requirements of industrial environments. Its high surge capability and immunity to voltage fluctuations make it an ideal choice for motor drives, heating, lighting control, and power supply operations that demand reliability and efficiency.

Overall, the BTW69-800 SCR from STMicroelectronics is a powerful and reliable component for engineers looking to design robust and efficient power control systems.
