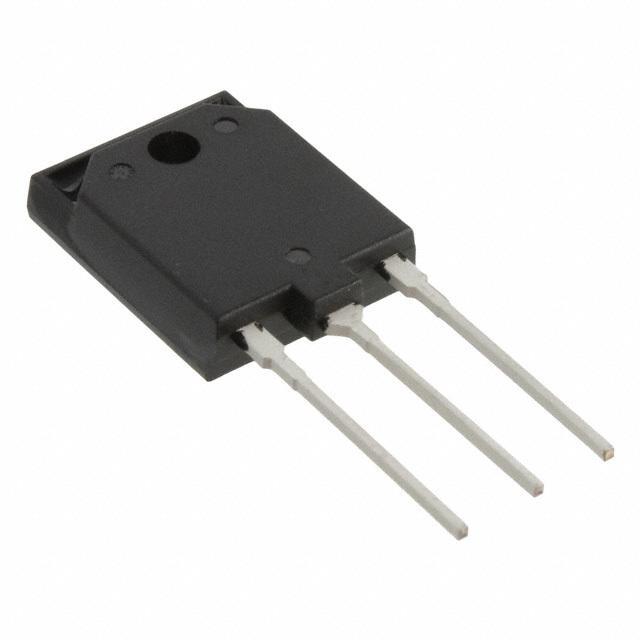

Same model may have multiple batches, images only for reference.
CR25RM-12D#B00 Renesas Electronics America
Same model may have multiple batches, images only for reference.

CR25RM-12D#B00

Part No CR25RM-12D#B00
Manufacturer Renesas Electronics America
Catalog SCRs - Single
Description TRIAC 600V 2.5A / SCR 600V 39.3A(RMS) 360A 3-Pin(3+Tab) TO-3PFM Tube
Datasheet
CR25RM-12D#B00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Renesas Electronics America
Packaging Tube
Voltage - Off State 600V
Voltage - Gate Trigger (Vgt) (Maximum) 1.5V
Current - Gate Trigger (Igt) (Maximum) 30mA
Voltage - On State (Vtm) (Maximum) 1.6V
Current - On State (It (AV)) (Maximum) 25A
Current - On State (It (RMS)) (Maximum) 39.3A
Current - Hold (Ih) (Maximum) 15mA
Current - Off State (Maximum) 2mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 360A @ 50Hz
SCR Type Standard Recovery
Operating Temperature Range -40°C ~ 150°C
Mounting Style Through Hole
Package TO-3PFM, SC-93-3
Manufacturer Package TO-3PFM
Win Source Part Number 771754-CR25RM-12D#B00
Popularity Medium
Supply and Demand Status Limited
Family Name CR25RM-12D
Introduction Date July 06, 2008
ECCN EAR99
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian CR25RM-12D#B00 CAD Model

Description

The CR25RM-12D#B00 is a standard recovery SCR from Renesas Electronics America. It has a TO-3PFM, SC-93-3 package and can be mounted through hole.

  • Voltage Off State: 600V
  • Current Non-Rep. Surge: 360A @ 50Hz
  • Current On State (It (RMS)): 39.3A
  • Voltage Gate Trigger (Vgt): 1.5V
  • Family: CR25RM-12D
  • Category: Discrete semiconductor products
  • Popularity: Medium
  • Supply and Demand Status: Limited
