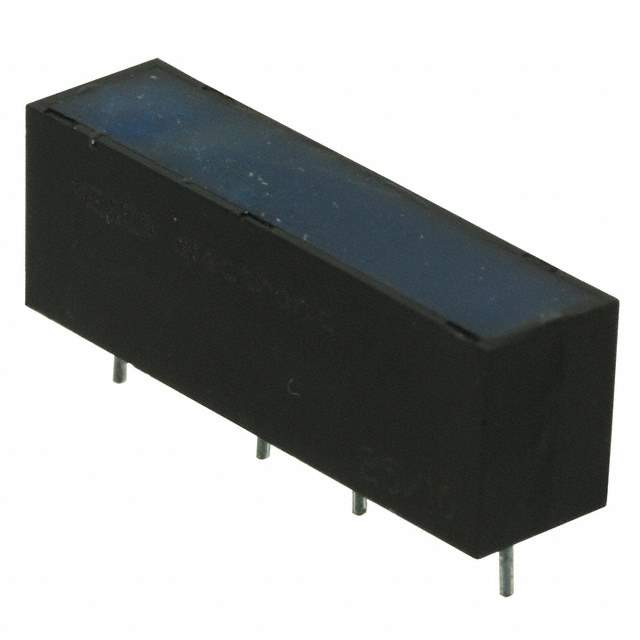

SIL12-1A72-71L Real Image
Same model may have multiple batches, images only for reference.

SIL12-1A72-71L

Part No SIL12-1A72-71L
Manufacturer Standex-Meder Electronics
Catalog Reed Relays
Description RELAY REED SPST 0.5A 12V / SIL Reed Relay
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Standex-Meder Electronics
Packaging Tube
Mounting Style Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 500mA
Switching Voltage 200VAC, 200VDC - Max
Coil Current 12mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 8.4 VDC
Must Release Voltage 1.8 VDC
Operate Time 0.7ms
Release Time 0.1ms
Temperature Range - Operating -20°C ~ 70°C
Coil Resistance 1 kOhms
Manufacturer Pack Quantity 25
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 811638-SIL12-1A72-71L
Ultra Librarian 3D Model Ultra Librarian SIL12-1A72-71L CAD Model

Description

The SIL12-1A72-71L from Standex-Meder Electronics is a non-latching SPST-NO (1 Form A) contact form switch designed for through-hole mounting.

  • Contact Form: SPST-NO (1 Form A)
  • Mounting Type: Through Hole
  • Coil Voltage: 12VDC
  • Coil Resistance: 1 kOhms
  • Operate Time: 0.7ms
  • Release Time: 0.1ms
  • Contact Rating (Current): 500mA
  • Switching Voltage: 200VAC, 200VDC - Max
  • Seal Rating: -
  • Operating Temperature: -20°C to 70°C
  • Packaging: Tube
  • Popularity: Low
