MK16-B-2

Part No MK16-B-2
Manufacturer Standex-Meder Electronics
Catalog Magnetic, Reed Switches
Description SWITCH REED SPST-NO 400MA 200V / Reed Sensors for SMD Mounting
Datasheet
MK16-B-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Standex-Meder Electronics
Packaging Reel
Type Molded Body
Circuit SPST-NO
Operate Range 10 ~ 15AT
Current - Switching 400mA (AC/DC)
Voltage - Switching AC 200V
Voltage - Switching DC 200V
Power - Rated 10W
Operate Time 0.6ms
Release Time 0.05ms
Mounting Style SMD
Termination Style Gull Wing
Length - Overall 0.614" (15.60mm)
Size - Body 0.457" L x 0.091" W x 0.091" H (11.60mm x 2.30mm x 2.30mm)
Height Above Board 0.094" (2.40mm)
Temperature Range - Operating -40°C ~ 130°C
Capacitance 0.2pF
Current - Carry 500mA (AC/DC)
Manufacturer Pack Quantity 2,500
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Balance
Win Source Part Number 802048-MK16-B-2
Ultra Librarian 3D Model Ultra Librarian MK16-B-2 CAD Model

Description

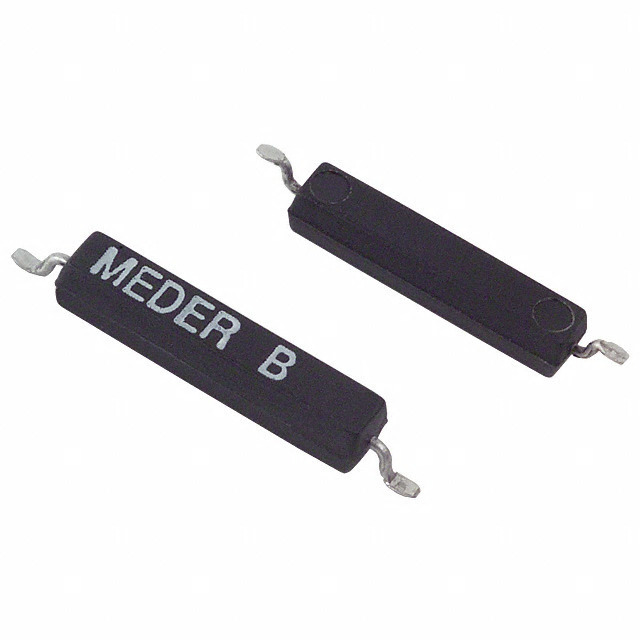

The MK16-B-2 from Standex-Meder Electronics is a molded body type reed switch.

  • Termination Style: Gull-wing
  • Temperature Range: -40°C to 130°C
  • Height Above Board: 0.094" (2.40mm)
  • Capacitance: 0.2pF
  • Circuit: SPST-NO
  • Power Rating: 10W
  • Operate Range: 10 ~ 15AT
  • Switching Current: 400mA (AC/DC)
  • Size: 0.457" L x 0.091" W x 0.091" H (11.60mm x 2.30mm x 2.30mm)
  • Carry Current: 500mA (AC/DC)
  • Supply/Demand Status: Balanced
  • Manufacturer Pack Quantity: 2,500
